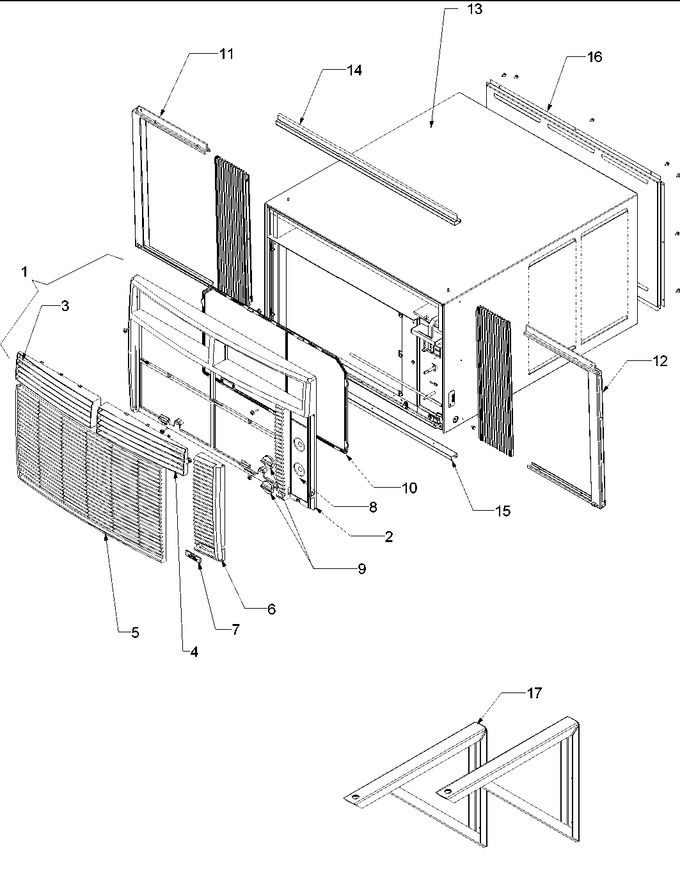

01 - Center Partition Assy & Controls


02 - Evaporator, Condenser & Compressor


03 - Outercase, Curtains & Front Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	BT3075029		Assy Front		Appelez-nous	-
2	BT3075102		Frame - Front		Appelez-nous	-
3	BT3075413		Left Vent Assy		Appelez-nous	-
4	BT3075411		Right Vent Assy		Appelez-nous	-
5	BT3075202		Grill - Front		Appelez-nous	-
6	BT3075302		Door, Control (large)		Appelez-nous	-
7	BT3075920		Logo, 1st Edition `amana`		Appelez-nous	-
8	BT14933282		Label, Amana		Appelez-nous	-
9	BT3075631		Knob, Rac (cool Gray)				$ 30.93
10	BT1419201		Frame, Filter		Appelez-nous	-
11	BT3074113		Assy, Shutter Lg-lt		Appelez-nous	-
12	BT3074112		Assy, Shutter Lg-rt		Appelez-nous	-
13	3050801S		Wrapper Assy		Appelez-nous	-
14	3003002P		Support, Top (w/paint Lrg)		Appelez-nous	-
15	3003102P		Support, Bottom (brk/paint Lrg		Appelez-nous	-
16	3002206P		Pnl, Rear Louver (w/paint Lrg)		Appelez-nous	-
17	3084002S		Support Bracket		Appelez-nous	-
NI	BT1393205		Kit,hardware (large)		Appelez-nous	-
NI	BT1392601		Foam .25 X .50 (7.0 Ft)		Appelez-nous	-
NI	BT1392600		Foam .75 X 1.50 (3.5 Ft)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
