01 - Center Partition Assy And Controls
02 - Evaporator, Condenser And Compressor
03 - Miscellaeous Information
04 - Outercase, Curtains And Front Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

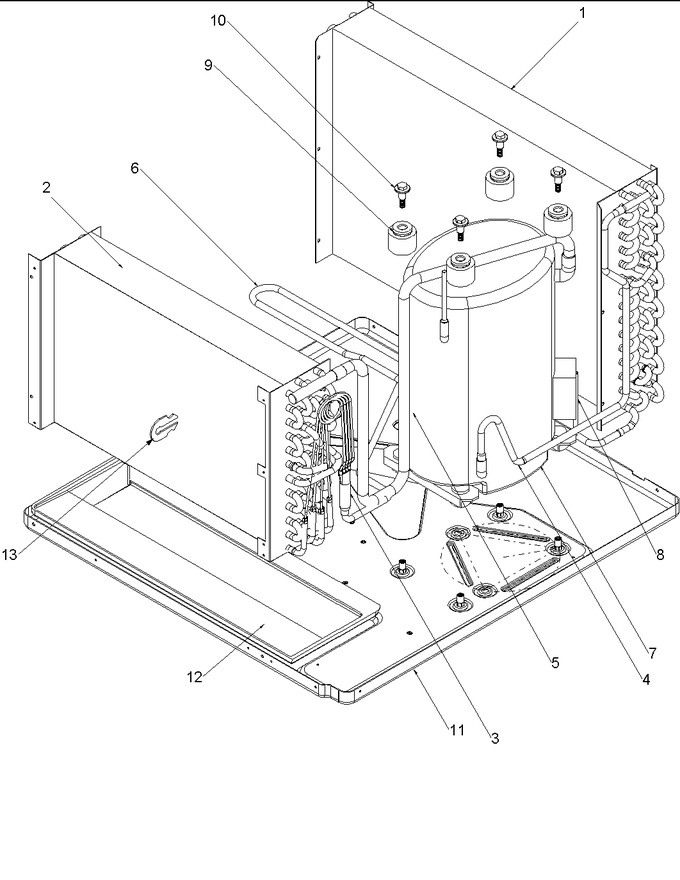

| 1 | 3096508 | Assy, Cond Coil Tubing |
|
- | |||||
| 2 | 3096015 | Assy, Evap Coil Tubing |
|
- | |||||
| 3 | 3093844 | Assy, Capillary Tube |
|
- | |||||
| 4 | 30936215 | Discharge Line |
|
- | |||||
| 5 | 30936217 | Suction Line |
|
- | |||||
| 6 | 3093836 | Assy, Liquid Line |
|
- | |||||
| 7 | BT9266204 | Compressor |
|
- | |||||
| 8 | BT1392311 | Clip, Retainer |
|
- | |||||
| 9 | BT1339500 | Grommet - Comp |
|
- | |||||
| 10 | BT1393704 | Bolt, Comp. Shoulder 5/16-18 |
|
- | |||||
| 11 | 3050208S | Assy,basepan Service |
|
- | |||||
| 12 | BT3005002 | Pan, Drain (styrofoam Large) |
|
- | |||||
| 13 | BT1531802 | Clip, Bulb |
|
- | |||||
| NI | BT3068516 | Plug Wire,compressor |
|
- |
