| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
67005197 |
|
Door Assy., Ref. Foam (blk) |
10 |
Appelez-nous
|
- |
|
|
|
| 1 |
12818236B |
|
Ref Dr Foam Assy (blk) |
11 |
Appelez-nous
|
- |
|
|
|
| 2 |
12991602 |
|
Screw, Tc |
11 |
Appelez-nous
|
- |
|
|
|
| 2 |
67006134 |
|
Closure, Door (blk) |
11 |
Appelez-nous
|
- |
|
|
|
| 2 |
R0181181 |
 |
Kit,dr Closure |
10 |
|
Immediately |
$ 7.19 |
|
|
| 2 |
WP8281227 |
 |
Screw, Tc (Replaces: M0220432) |
10 |
|
|
$ 10.44 |
|
|
| 3 |
10961002 |
|
Bushing, Door (blk) |
10 |
Appelez-nous
|
- |
|
|
|
| 4 |
12636401B |
 |
Stop, Door (blk) |
10 |
|
|
$ 10.80 |
|
|
| 4 |
67006672 |
|
Screw |
11 |
Appelez-nous
|
- |
|
|
|
| 4 |
67006518 |
|
Stop, Door (blk) |
11 |
Appelez-nous
|
- |
|
|
|
| 4 |
WP98165 |
 |
Screw, Sm (Replaces: M0211018) |
10 |
|
|
$ 8.00 |
|
|
| 5 |
M0311604 |
|
Plug, Button (blk) |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
A3080001 |
|
Plug, Button (blk) |
10 |
Appelez-nous
|
- |
|
|
|
| 7 |
W10840101 |
 |
Gasket, Ref. Door (blk) (Replaces: 67003965) |
10 |
|
|
$ 311.67 |
|
|
| 8 |
67004314 |
|
Bucket, Refrigerator Door |
10 |
Appelez-nous
|
- |
|
|
|
| 9 |
67002957 |
|
Door, Dairy |
10 |
Appelez-nous
|
- |
|
|
|
| 10 |
67002304 |
|
Tray, Dairy |
10 |
Appelez-nous
|
- |
|
|
|
| 11 |
67004208 |
|
Bucket, Ref Gallon |
10 |
Appelez-nous
|
- |
|
|
|
| 12 |
10423131 |
|
Bin, Utility |
10 |
|
|
$ 31.13 |
|
|
| 13 |
10436404 |
|
Lid, Utility |
10 |
|
|
$ 60.85 |
|
|
| 14 |
10436506 |
|
Tray, Egg |
10 |
|
|
$ 8.28 |
|
|

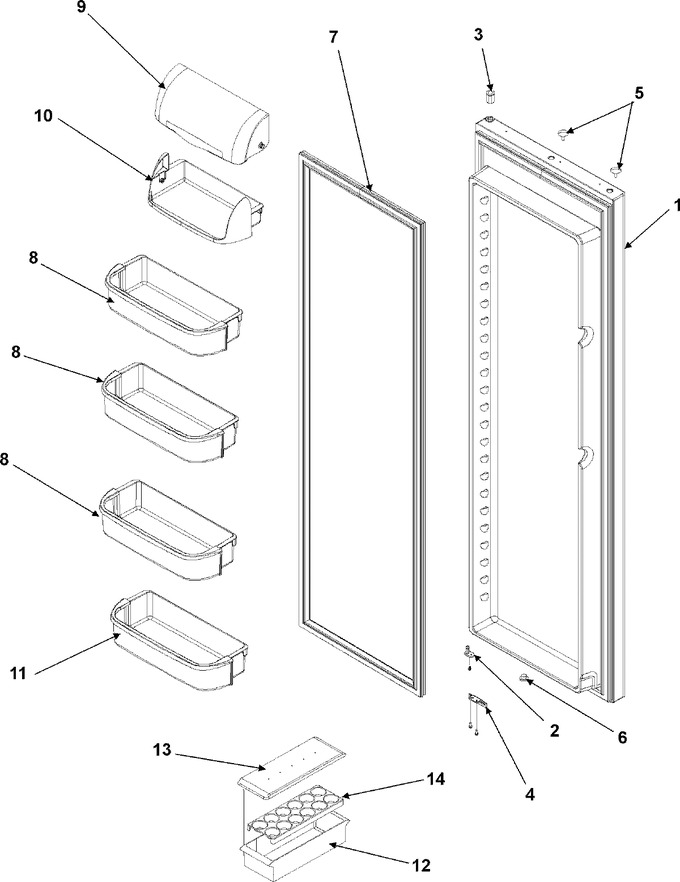

View Diagram in Separate Window
Print Part List
