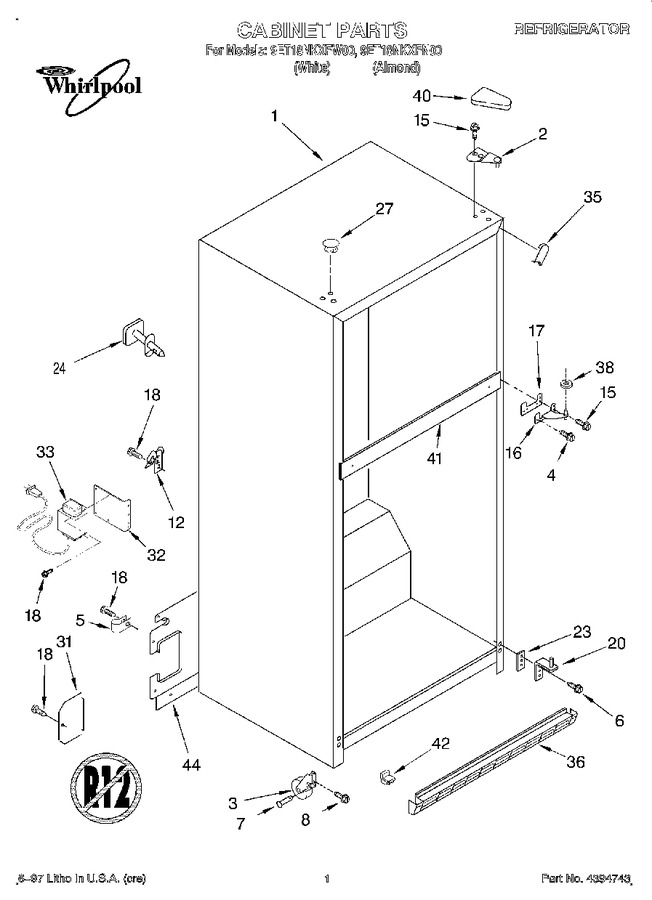

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	WP2189412		Hinge, Top   (Replaces: 2157591)				$ 114.50
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	489426		Screw		Appelez-nous	-
5	489348		Clamp, Tube (water Supply Line)		Appelez-nous	-
6	489459		Screw		Appelez-nous	-
7	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 18.21
8	2174650		Screw		Appelez-nous	-
12	549193		Clamp-cord				$ 13.39
15	WP999367		Screw   (Replaces: 489423)				$ 7.86
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 87.64
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 10.89
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
20	WP2254473		Hinge Butt   (Replaces: 2189194)				$ 8.47
23	2172743		Shim, Bottom Hinge				$ 33.55
24	N/A		Fitting, Water Tube (not Serviced)		Appelez-nous	-
27	WP2151652		Hole Plug (6) (white)   (Replaces: 2151652)				$ 21.78
27	2151653		Hole Plug (6) (almond)		Appelez-nous	-
31	2166251		Cover, Water Valve				$ 6.43
32	2195006		Bracket		Appelez-nous	-
33	2195290		Transformer		Appelez-nous	-
35	WPW10283959		Corner Filler (2) (white)   (Replaces: 2163733)				$ 7.82
35	2166187		Corner Filler (2) (almond)		Appelez-nous	-
36	2189157		Grille (white)		Appelez-nous	-
36	2189158		Grille (almond)		Appelez-nous	-
38	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
40	2160404		Cover, Hinge (almond)		Appelez-nous	-
40	WP2213360		Cover-hinge (white)   (Replaces: 2160403)				$ 19.23
41	N/A		Rail Center (not Serviced)		Appelez-nous	-
42	2166204		Corner Filler, Grille (almond)		Appelez-nous	-
42	2166156		Corner Filler, Grille (white)		Appelez-nous	-
44	2254582		Cover, Unit   (Replaces: 2189059)				$ 128.31

    View Diagram in Separate Window       Print Part List
