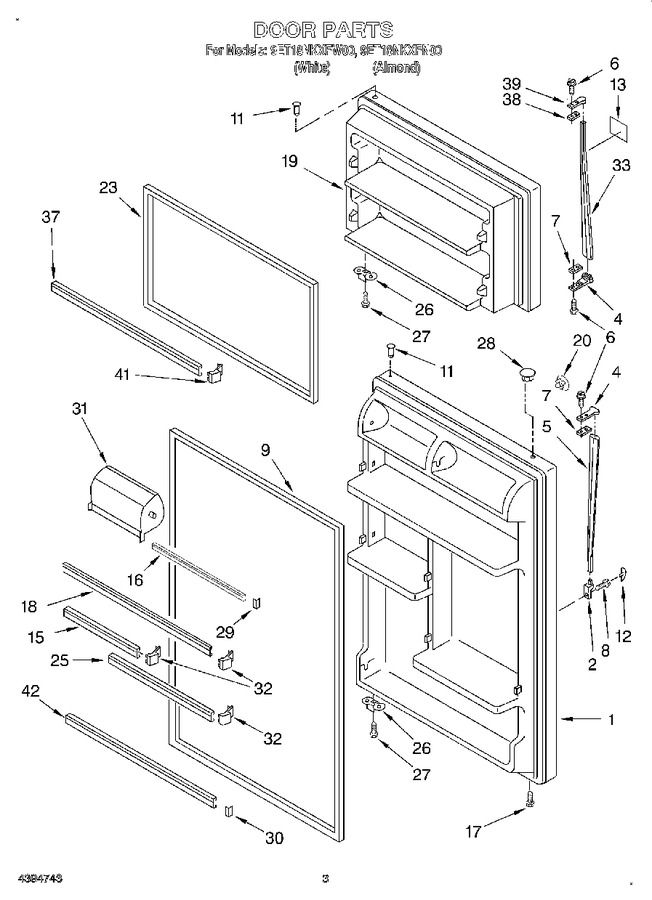

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183949 | Refrigerator Door (includes No.9 & No.11) (almond) |
|
- | |||||
| 1 | 2183948 | Refrigerator Door (includes No.9 & No.11) (white) |
|
- | |||||
| 2 | 819342 | End Cap (white) (Replaces: 2183141) |
|
Immediately | $ 47.96 | ||||
| 2 | 819342 | End Cap (almond Center) (Replaces: 2183142) |
|
Immediately | $ 47.96 | ||||
| 4 | 819342 | End Cap, Handle (2) (almond) (Replaces: 9791772) |
|
Immediately | $ 47.96 | ||||
| 4 | 819342 | End Cap, Handle (2) (white) (Replaces: 9791771) |
|
Immediately | $ 47.96 | ||||
| 5 | 2148036 | Handle, Center (almond) |
|
- | |||||
| 5 | WP2162555 | Handle, Center (white) (Replaces: 2148035) |
|
Immediately | $ 150.11 | ||||
| 6 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.49 | |||||
| 7 | 943188 | Spacer |
|
$ 7.80 | |||||
| 8 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 9 | 2159057 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 164.66 | ||||
| 11 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 12 | 9791770 | Cover, Screw (almond) |
|
- | |||||
| 12 | 9791769 | Cover, Screw (white) |
|
$ 5.70 | |||||
| 13 | 2175384 | Nameplate (almond Model) |
|
- | |||||
| 13 | 2175383 | Nameplate (white Model) |
|
- | |||||
| 15 | 2195366 | Trim, Door |
|
- | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 118.40 | |||||
| 17 | WP8281206 | Screw (Replaces: 489028) |
|
$ 7.94 | |||||
| 18 | 2195365 | Trim, Door |
|
- | |||||
| 19 | 2182491 | Freezer Door (includes No.11 & No.23) (almond) |
|
- | |||||
| 19 | 2182487 | Freezer Door (includes No.11 & No.23) (white) |
|
- | |||||
| 20 | 2189008 | Hole Plug (almond) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 23 | 2159327 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 164.58 | ||||
| 25 | WP2195943 | Trim, Door Shelf (Replaces: 2195367) |
|
$ 87.41 | |||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 7.80 | ||||
| 28 | 989196 | Hole Plug (almond) |
|
- | |||||
| 29 | WP2156007 | Plug-trim (4) (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 30 | WP2156006 | Plug-trim (4) (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 31 | WP2218113 | Door, Compartment (Replaces: 2171036) |
|
Immediately | $ 50.33 | ||||
| 32 | WP2195915 | Plug-trim (Replaces: 2156000) |
|
$ 13.07 | |||||
| 33 | 2171044 | Handle, F.c. (almond) |
|
- | |||||
| 33 | WP2162555 | Handle, F.c. (white) (Replaces: 2171043) |
|
Immediately | $ 150.11 | ||||
| 37 | 2171282 | Trim-door (2) |
|
- | |||||
| 38 | 943187 | Shim |
|
$ 25.14 | |||||
| 39 | 819342 | Handle End (almond) (Replaces: 9791777) |
|
Immediately | $ 47.96 | ||||
| 39 | 819342 | Handle End (white) (Replaces: 9791776) |
|
Immediately | $ 47.96 | ||||
| 41 | WP2195916K | Endcap (4) (Replaces: 2195916) |
|
Immediately | $ 12.55 | ||||
| 42 | WPW10421484 | Trim, Door (Replaces: 2177260) |
|
$ 129.76 | |||||
| 100 | 2182569 | Featurepak (includes 15,16, 18,25,29,30,31, 32,37,41,42) Also See Shelf Partspg. |
|
- |
