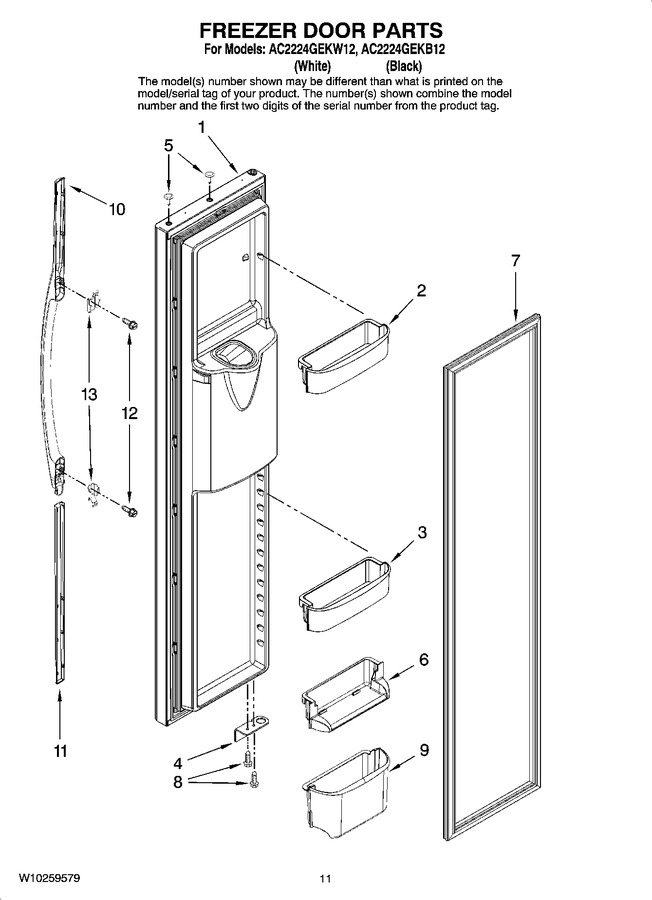

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13091903BQ | Door, Freezer (black) |
|
- | |||||
| 1 | 13091902WQ | Door, Freezer (white) |
|
- | |||||
| 2 | 67004772 | Bucket, Upper |
|
- | |||||
| 3 | 12557501 | Bucket, Lower (1) |
|
$ 17.64 | |||||
| 4 | 67007020 | Stop, Door (black) |
|
- | |||||
| 4 | 67006478 | Stop, Door (white) |
|
- | |||||
| 5 | M0311604 | Plug, Button (black) |
|
- | |||||
| 6 | 67004291 | Frame, Tilt Bucket |
|
- | |||||
| 7 | W10133491 | Gasket, Door (black) |
|
$ 342.75 | |||||
| 7 | W10133835 | Gasket, Door (white) |
|
- | |||||
| 8 | WP8281227 | Screw (Replaces: M0220432) |
|
$ 10.44 | |||||
| 9 | 67004290 | Bucket, Tilt |
|
- | |||||
| 10 | 67004768 | Handle |
|
- | |||||
| 11 | 67004297 | Trim, Handle |
|
- | |||||
| 12 | WP67006197 | Screw, Handle (Replaces: 67004293) |
|
$ 8.06 | |||||
| 13 | 67004292 | Clip, Handle |
|
- |
