SELECT A DIAGRAM

01 - Cabinet

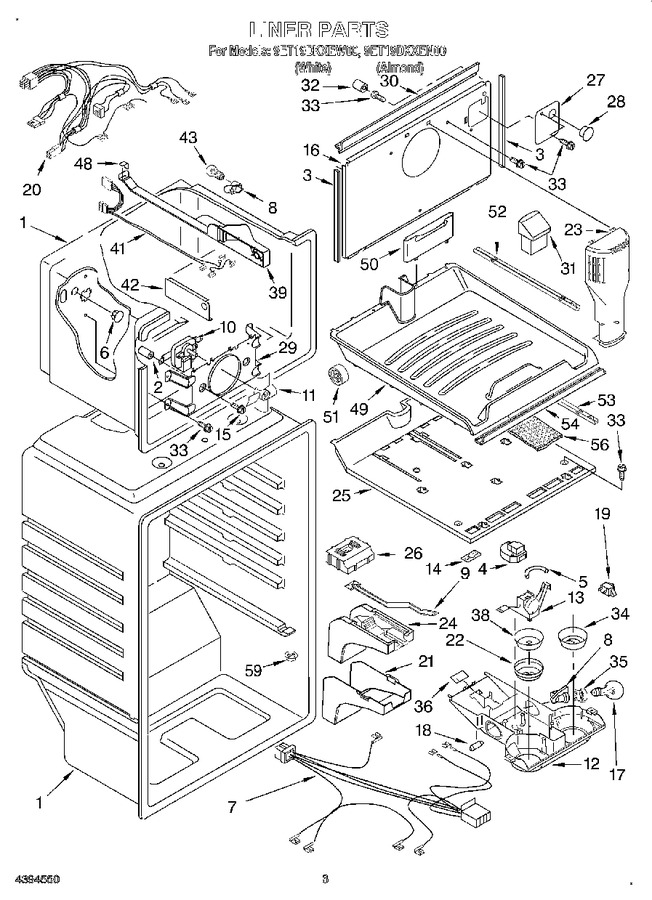

02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
3	WP2254360		Gasket, Evaporator Cover (side)   (Replaces: 2166181)				$ 28.12
4	W10822278		Timer, Defrost   (Replaces: 2193084)			Immediately	$ 34.44
5	WP2196003		Thermostat Tube Barrier   (Replaces: 549512)				$ 8.35
6	940014		Hole Plug				$ 18.33
7	2193074		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 115.67
9	2179853		Damper, Air		Appelez-nous	-
10	2176298		Fan Motor		Appelez-nous	-
11	WP2163777		Blade, Fan   (Replaces: 2163777)			Immediately	$ 66.15
12	2179869		Control Box		Appelez-nous	-
13	4387562		Thermostat Assembly (includes Items 5, 18, & 36)   (Replaces: 2193033)			Immediately	$ 333.13
14	2176341		Clip, Defrost Timer		Appelez-nous	-
15	489412		Screw		Appelez-nous	-
16	2183152		Cover, Evaporator		Appelez-nous	-
17	W11679940		Light Bulb (2)   (Replaces: 946059)			Immediately	$ 11.30
18	2163802		Weight, Thermal		Appelez-nous	-
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 39.09
20	2179823		Wire Assembly, Freezer Compartment		Appelez-nous	-
21	2176281		Cover, Air Diffuser				$ 41.64
22	2184572		Knob, Thermostat		Appelez-nous	-
23	2182340		Air Tower				$ 43.02
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2176280)			Immediately	$ 131.03
25	2190590		Freezer Floor		Appelez-nous	-
26	2179877		Air Diffuser, Top (includes Item 37)		Appelez-nous	-
27	WP2217784		Cover, Hole   (Replaces: 2183038)				$ 47.22
28	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
29	2163827		Bracket, Fan Motor		Appelez-nous	-
30	WP2254360		Gasket, Evaporator Cover (top)   (Replaces: 2166178)				$ 28.12
31	2174629		Air Return & Foil Assembly		Appelez-nous	-
32	WP487996		Cap   (Replaces: 487996)				$ 8.67
33	WP489442		Screw   (Replaces: 489438)			Immediately	$ 11.49
34	2182479		Knob, Damper		Appelez-nous	-
35	WP2175210		Shroud   (Replaces: 2175210)				$ 86.74
36	WP2205079		Seal, Rear Thermostat   (Replaces: 2172532)				$ 10.01
38	WP2184574		Gear Wheel, Thermostat   (Replaces: 2184574)				$ 72.03
39	2182382		Housing Base		Appelez-nous	-
41	2193096		Wiring Harness, Freezer Light		Appelez-nous	-
42	2182384		Electrical Shield, Freezer Light		Appelez-nous	-
43	4396822		Bulb, Light   (Replaces: 850166)			Immediately	$ 13.58
48	2166284		Gasket, Rear				$ 6.06
49	2166299		Pullout, Freezer Floor (includes Item 56)		Appelez-nous	-
50	2176242		Rear Fence, Pull- Out Freezer Floor		Appelez-nous	-
51	2176246		Roller, Slide		Appelez-nous	-
52	2179713		Side Support, Floor Assembly		Appelez-nous	-
53	2179714		Center Support, Floor Assembly		Appelez-nous	-
54	2179720		Trim, Pullout Freezer Floor		Appelez-nous	-
56	2179772		Insulation, Freezer Floor		Appelez-nous	-
59	WP2210509		Valve, Release   (Replaces: 2171931)				$ 99.15

    View Diagram in Separate Window       Print Part List
