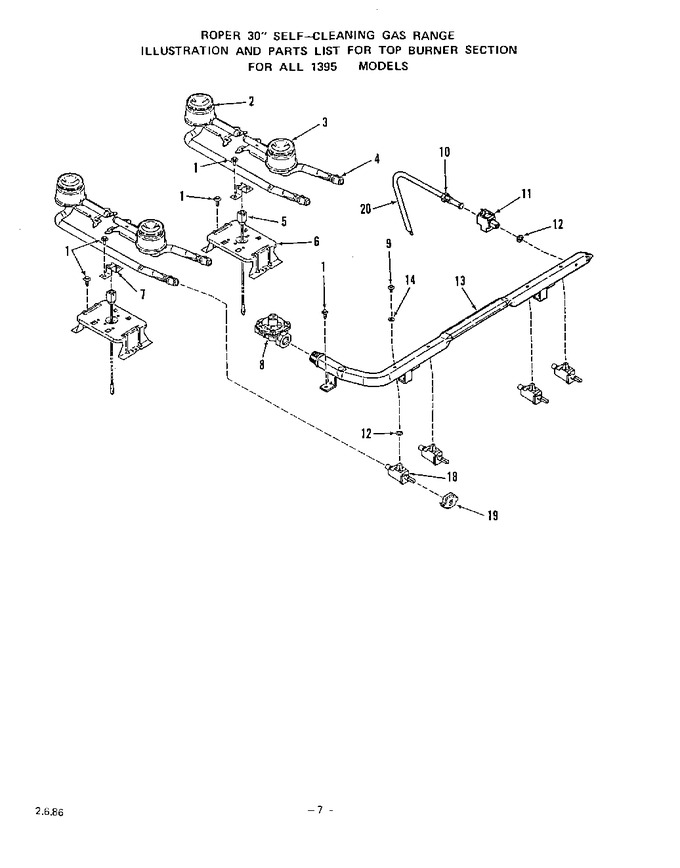

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 2 | 327075 | Rear Top Burner-rt. Or Lt. (inc`s. Key 4) |
|
- | |||||
| 3 | 327074 | Front Top Burner-rt. Or Lt. (inc`s.key 4) |
|
- | |||||
| 4 | 327198 | Air Shutter (4 Req) |
|
- | |||||
| 5 | 329464 | Electrode-spark Igniter (left) |
|
- | |||||
| 5 | 329462 | Electrode-spark Igniter (right) |
|
- | |||||
| 6 | 327073 | Support-top Burner (lt. Or Rt.) |
|
- | |||||
| 7 | 312453 | Bracket-spark Igniter (lt. Or Rt.) |
|
- | |||||
| 8 | 311106 | Pressure Regulator (13950a. 13951a Models) |
|
- | |||||
| 8 | 324528 | Pressure Regulator (13952a Models) |
|
- | |||||
| 9 | 311455 | Mounting Screw 1/4-20 |
|
- | |||||
| 10 | 113384 | Inverted Nut 3/8`` |
|
- | |||||
| 11 | 326830 | Shut Off Valve |
|
- | |||||
| 12 | 313563 | Rubber Gasket |
|
- | |||||
| 13 | 328488 | Manifold Pipe |
|
- | |||||
| 14 | 311692 | Rubber Gasket |
|
- | |||||
| 18 | 329272 | Gas Valve (4 Req) (13950a, 13951a Models) |
|
- | |||||
| 18 | 331996 | Gas Valve (4 Req) (13952a Models) |
|
- | |||||
| 19 | 310253 | Switch-gas Valve (4 Req) |
|
- | |||||
| 20 | 280436 | Tubing 3/8`` (shut-off Valve To Control) |
|
- |
