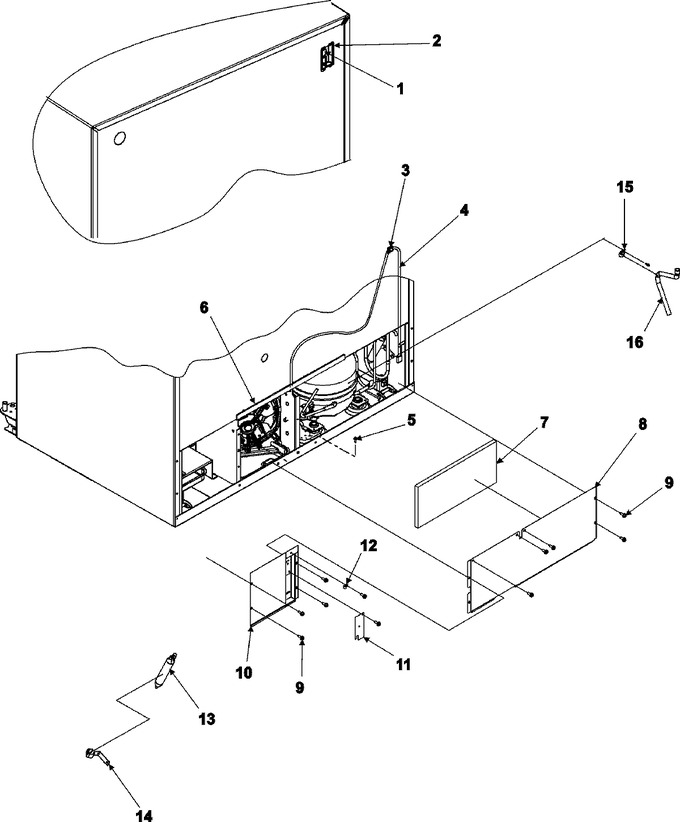

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evap Fan Assy & Crisper Light


06 - Evaporator Assy And Rollers


07 - Freezer Compartment


08 - Freezer Door


09 - Freezer Shelves


10 - Hinges


11 - Optional Ice Maker Kit-ic511


12 - Refrigerator Door


13 - Refrigerator Shelves


14 - Supplemental Information


15 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3080001		Plug, Button (blk)	10	Appelez-nous	-
2	67005276		Sump, Fill Tube	10	Appelez-nous	-
3	WPM0104106		Clip   (Replaces: M0104106)	10			$ 8.17
4	67002229		Cord, Power	10	Appelez-nous	-
5	WP489399		Screw, Ca   (Replaces: M0239216)	10			$ 7.30
6	B5759649		Gasket, Mc Back	10	Appelez-nous	-
7	67003796		Fiber, Acoustic	10			$ 19.27
8	67002230		Back, Mach Comp	10	Appelez-nous	-
9	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
10	12479804		Cover, Water Valve	10	Appelez-nous	-
11	12479901		Plate, Cover	10	Appelez-nous	-
12	W10833902		Clamp, Tube   (Replaces: M0108105)	10			$ 11.54
13	WPB2150504		Drier   (Replaces: B2150504)	10			$ 136.98
14	67002999		Screw, Sm	10	Appelez-nous	-
14	10547002		Clip, Drier	10	Appelez-nous	-
15	WP489069		Screw   (Replaces: M0220617)	10		Immediately	$ 8.40
15	M0102303		Clamp	10	Appelez-nous	-
16	12580401		Tube, Drain	10	Appelez-nous	-
