01 - Cover Sheet

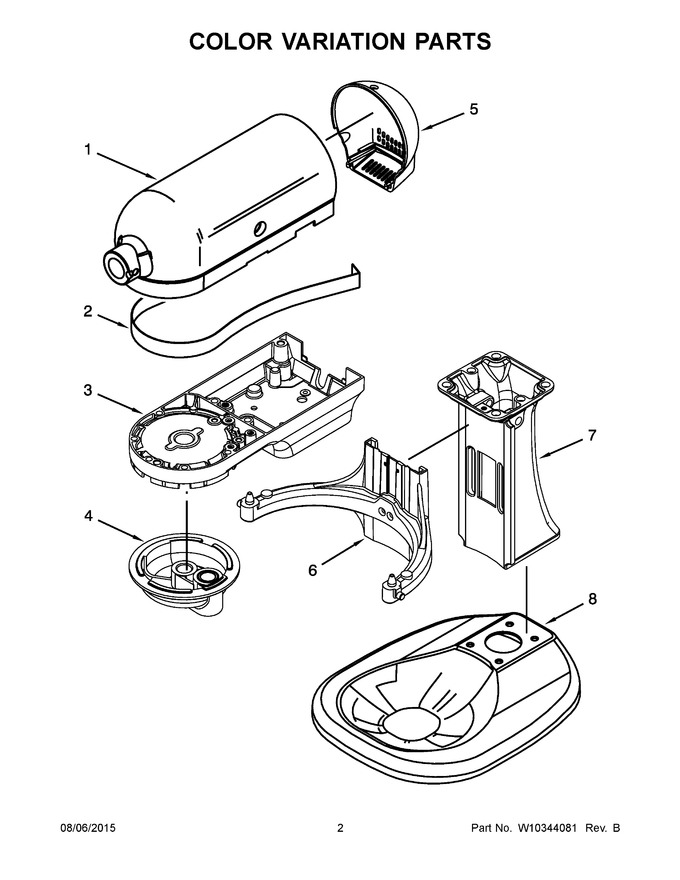

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9704790 | Motor Housing (imperial Black) |
|
- | |||||
| 2 | 9705184 | Trim Band (black) |
|
- | |||||
| 3 | 240354-53 | Lower Gearcase (imperial Black) |
|
- | |||||
| 4 | 9704797 | Planetary (imperial Black) |
|
- | |||||
| 5 | 9704805 | End Cover (imperial Black) |
|
- | |||||
| 6 | 9704800 | Bowl Support And Pins (imperial Black) |
|
- | |||||
| 7 | 9704802 | Column (imperial Black) |
|
- | |||||
| 8 | 3179299 | Base & Foot Assembly (empire Red) (Replaces: 9702408) |
|
- | |||||
| 1A | WP240291-21 | Motor Housing (empire Red) (Replaces: 240291-21) |
|
$ 101.29 | |||||
| 1B | W11672793 | Motor Housing (white) (Replaces: 240291-1) |
|
$ 113.22 | |||||
| 3A | W10330445 | Lower Gearcase (empire Red) |
|
- | |||||
| 4A | W11084831 | Planetary (empire Red) (Replaces: 240286-23) |
|
$ 27.92 | |||||
| 4B | WP240286-1 | Planetary (white) (Replaces: 240286-1) |
|
Immediately | $ 25.99 | ||||
| 5A | W11084313 | End Cover (empire Red) (Replaces: 240253-22) |
|
$ 29.89 | |||||
| 5B | WP240253-1 | End Cover (white) (Replaces: 240253-1) |
|
$ 21.47 | |||||
| 6A | 3179318 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 6B | 3179300 | Bowl Support And Pins (white) |
|
$ 66.43 | |||||
| 7A | 9702393 | Column (empired Red) |
|
- | |||||
| 7B | 240148-4 | Column (white) |
|
- | |||||
| 8A | W11233906 | Base & Foot Assembly (white) (Replaces: 240493-2) |
|
- |
