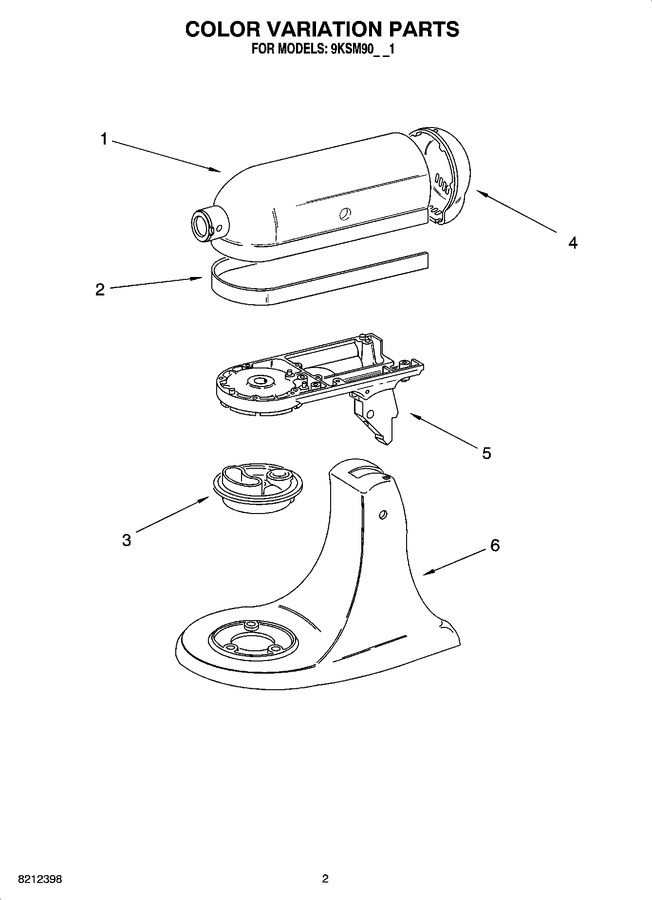

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Motor And Control Parts
04 - Base And Pedestal Unit, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 240291-10 | Motor Housing (empire Green) |
|
- | |||||
| 2 | 9705180 | Trim Band (black) |
|
- | |||||
| 3 | 9706670 | Planetary-empire Green (Replaces: 240286-13) |
|
Immediately | $ 45.31 | ||||
| 4 | 240253-11 | End Cover-empire Green |
|
- | |||||
| 5 | 240350-74 | Lower Gearcase (empire Green) |
|
- | |||||
| 6 | 240151-11 | Pedestal-empire Green |
|
- |
