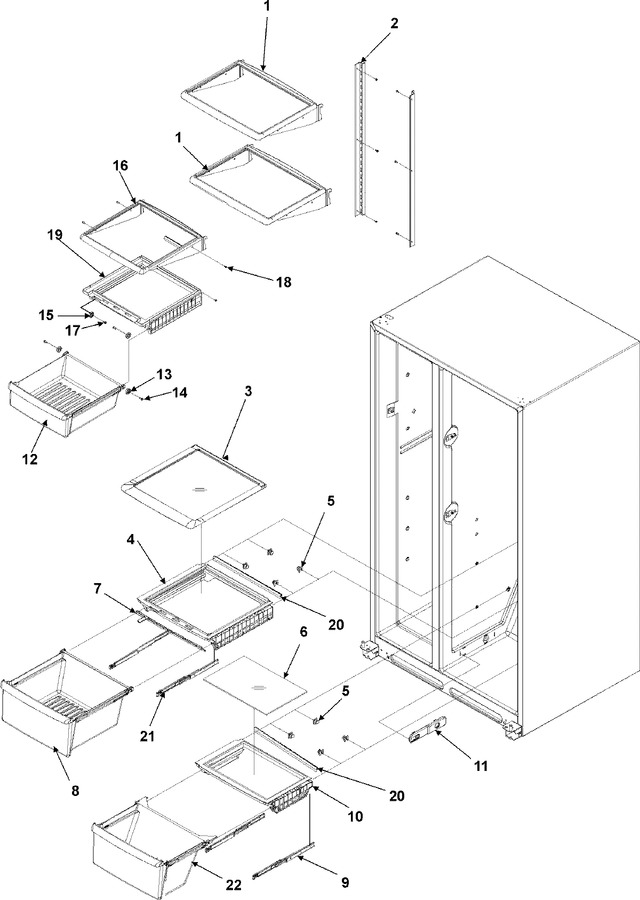

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67005227		Shelf, Ref Glide	10	Appelez-nous	-
2	67006425		Screw, Sm   (Replaces: 67006400)	11		Immediately	$ 7.30
2	67003840		Rail, L/r Lg Sxs	10	Appelez-nous	-
3	67004130		Shelf, Crisper Top	10	Appelez-nous	-
4	67004140		Frame, Crisper Shelf	10	Appelez-nous	-
5	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	10			$ 10.83
6	67004132		Glass, Meat Shelf	10	Appelez-nous	-
7	67004884		Slide, Humidity Control (blue)	11			$ 25.18
8	67005816		Pan, Lg Crisper	11			$ 68.73
9	67006964		Screw, Sm	11			$ 5.71
9	67005620		Glide, Meat Framex   (Replaces: 67004488)				$ 321.73
10	67004247		Frame, Meat Shelf	10	Appelez-nous	-
11	67004311		Temp Control Assy	10			$ 69.25
12	67004304		Pan, Sm Crisper	10	Appelez-nous	-
13	67004133		Roller, Pan	10	Appelez-nous	-
14	67004174		Pin, Roller	10			$ 6.11
15	67004169		Roller, Crisper	10			$ 5.81
16	67004200		Shelf, Ref Sta	10	Appelez-nous	-
17	67006692		Screw	11			$ 10.79
18	W11233072		Screw   (Replaces: 67006626)	10		Immediately	$ 14.72
19	67004973		Frame, Bldr Adj Crisper	10	Appelez-nous	-
20	67004249		Seal, Crisper Frame (rear)	10	Appelez-nous	-
21	67006964		Screw, Sm	11			$ 5.71
21	67004489		Glide, Crisper Frame	10	Appelez-nous	-
22	67005817		Pan, Meat	11	Appelez-nous	-
