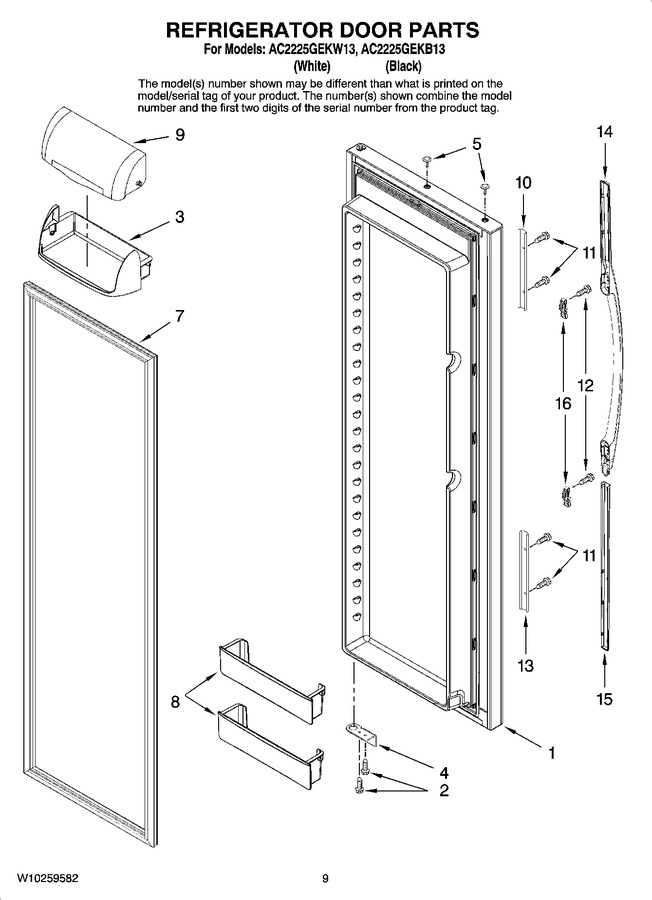

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12818236BQ		Door, Refrigerator (black)		Appelez-nous	-
1	12818235WQ		Door, Refrigerator (white)		Appelez-nous	-
2	R9800670		Screw (2)   (Replaces: M0223230)				$ 9.38
3	67002304		Tray, Dairy		Appelez-nous	-
4	67007017		Stop, Door (black)		Appelez-nous	-
4	67006517		Stop, Door (white)		Appelez-nous	-
5	M0311604		Plug, Button (2) (black)		Appelez-nous	-
7	W10133828		Gasket, Door (white)				$ 165.36
7	W10840101		Gasket, Door (black)   (Replaces: W10133482)				$ 311.67
8	67004314		Bucket, Door (2)		Appelez-nous	-
9	67002957		Door, Dairy		Appelez-nous	-
10	67004116		Cleat, Handle				$ 6.39
11	59002016		Screw		Appelez-nous	-
12	WP12992902		Screw, Shoulder   (Replaces: 67006282)				$ 11.07
13	67004117		Cleat, Handle				$ 6.47
14	W10119680		Handle (black)		Appelez-nous	-
14	WPW10119678		Handle (white)   (Replaces: W10119678)				$ 186.64
15	67004297		Trim, Handle (white)		Appelez-nous	-
15	67003814		Trim, Handle (black)		Appelez-nous	-
16	W10132420		Clip, Keyhole		Appelez-nous	-
