SELECT A DIAGRAM
1 - Freezer Door
2 - Fresh Food Door
3 - Cabinet Parts

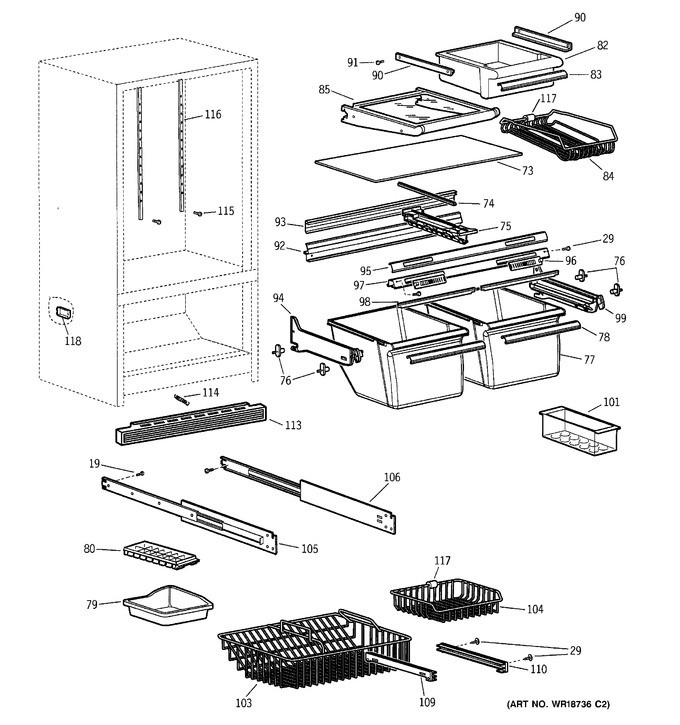

4 - Shelf Parts
5 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | WR01X10068 | Screw |
|
- | |||||
| 19 | WR17X10405 | Liner, Top (fz) |
|
- | |||||
| 29 | WZ04X0244 | Screw |
|
- | |||||
| 73 | WR32X10082 | Cover, Glass |
|
- | |||||
| 74 | WR14X10020 | Gasket, Center |
|
- | |||||
| 75 | WR72X10017 | Slide, Center |
|
- | |||||
| 76 | WR02X10214 | Support, Slides |
|
- | |||||
| 77 | WR32X10083 | Pan, Crisper |
|
- | |||||
| 78 | WR38X10148 | Trim, Vegetable Pan (gre |
|
- | |||||
| 79 | WG03L00017 | Ice Bucket (Replaces: WR32X10075) |
|
$ 78.84 | |||||
| 80 | WR30X10004 | Tray, Ice |
|
- | |||||
| 82 | WR32X10084 | Pan, Deli |
|
- | |||||
| 83 | WR38X10149 | Trim, Deli Pan (grey) |
|
- | |||||
| 84 | WR14X10021 | Gasket |
|
- | |||||
| 84 | WR30X10005 | Rack, Pop Can |
|
- | |||||
| 85 | WR71X10156 | Shelf, Slideout |
|
- | |||||
| 85 | WR71X10155 | Shelf, Fixed Spillproof |
|
- | |||||
| 90 | WR72X10018 | Slide |
|
- | |||||
| 91 | WR01X10077 | Screw |
|
- | |||||
| 92 | WR02X10215 | Rail, Rear |
|
$ 66.71 | |||||
| 93 | WR14X10022 | Gasket, Rear |
|
- | |||||
| 94 | WG03L01461 | Slide - L.h. (Replaces: WR72X10019) |
|
$ 55.98 | |||||
| 95 | WR38X10259 | Trim, Front (Replaces: WR38X10150) |
|
$ 19.08 | |||||
| 96 | WR04X10057 | Slide, Humidity |
|
- | |||||
| 97 | WR02X10216 | Rail, Front |
|
$ 109.53 | |||||
| 98 | WR14X10023 | Gasket, Front |
|
- | |||||
| 99 | WR72X10020 | Slide - R.h. |
|
- | |||||
| 101 | WR32X1435 | Bucket Egg |
|
- | |||||
| 103 | WR71M958 | Basket Lower Fz |
|
- | |||||
| 104 | WR71M959 | Basket Upper Fz |
|
- | |||||
| 105 | WR2M3538 | Slide Asm Lh Drawer |
|
- | |||||
| 106 | WR2M3539 | Slide Asm Rh Drawer |
|
- | |||||
| 109 | WR72X10023 | Slide - L.h., Small Bask |
|
- | |||||
| 110 | WR72X10024 | Slide - R.h., Small Bask |
|
- | |||||
| 113 | WR79X10004 | Panel, Kick (black) |
|
- | |||||
| 114 | WR02X10217 | Spring |
|
- | |||||
| 115 | WR01X10078 | Screw, Channel |
|
- | |||||
| 116 | WR72X10025 | Channel |
|
- | |||||
| 117 | WR2M3543 | Bumper |
|
- | |||||
| 118 | WR2X9159 | Cover, Icemaker |
|
- |
