SELECT A DIAGRAM

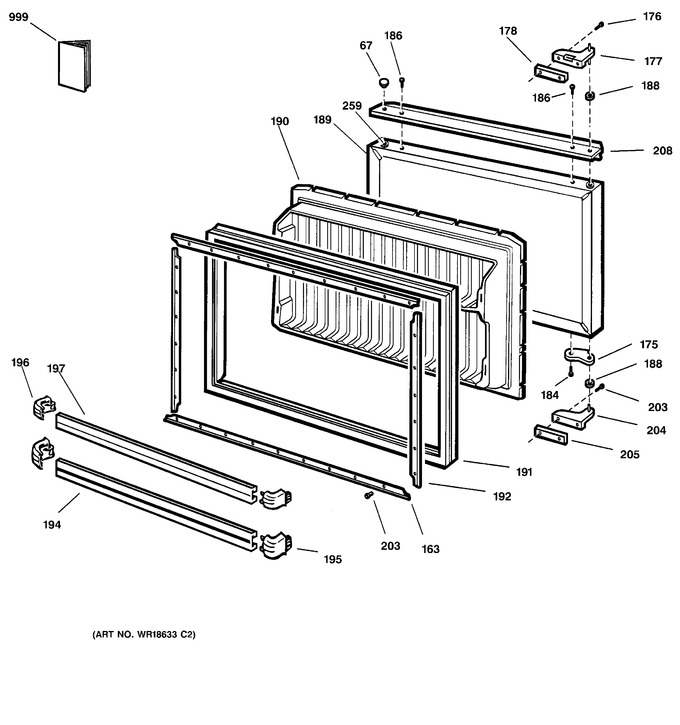

1 - Freezer Door
2 - Fresh Food Door
3 - Cabinet Parts
4 - Shelf Parts
5 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 67 | WR02X10242 | Plug, (almond) |
|
- | |||||
| 163 | WR02X10230 | Strip, Retainer - Top & |
|
- | |||||
| 175 | WR13X10038 | Door Stop |
|
- | |||||
| 176 | WR01X10088 | Screw |
|
- | |||||
| 177 | WR13X10039 | Hinge, Center |
|
- | |||||
| 177 | WR2X9281 | Pin, Hinge |
|
- | |||||
| 178 | WR02X10232 | Shim (white) |
|
- | |||||
| 184 | WR1X5475 | Screw |
|
- | |||||
| 186 | WR01X10093 | Screw, Handle (almond) |
|
- | |||||
| 188 | WR02X10235 | Kit, Washer |
|
- | |||||
| 189 | WR78X10245 | Panel Door Fz Ad |
|
- | |||||
| 190 | WR78X10243 | Liner |
|
- | |||||
| 191 | WR24X10022 | Gasket (white) |
|
- | |||||
| 192 | WR02X10236 | Strip, Retainer - Side |
|
- | |||||
| 194 | WR17X10411 | Front, Shelf (wide) |
|
- | |||||
| 195 | WG03L00280 | End Cap (wide) (Replaces: WR2X8345) |
|
$ 27.00 | |||||
| 196 | WG03L00648 | End Cap (narrow) (Replaces: WR2X9162) |
|
Immediately | $ 19.06 | ||||
| 197 | WR17X10412 | Front, Shelf (narrow) |
|
- | |||||
| 203 | WR01X10091 | Screw Btm Hinge Fz |
|
- | |||||
| 203 | WR01X10090 | Screw Retainer Strips |
|
- | |||||
| 204 | WR13X10040 | Hinge, Bottom |
|
- | |||||
| 205 | WR02X10237 | Shim, Bottom Hinge |
|
- | |||||
| 208 | WR12X10292 | Handle, Long (almond) |
|
- | |||||
| 259 | WR2X9274 | Bearing |
|
- | |||||
| 999 | 31-46002 | Instruction, Installatio |
|
- | |||||
| 999 | 31-51221 | Diagram, Wiring |
|
- | |||||
| 999 | 49-60059 | Use & Care Manual |
|
- | |||||
| 999 | WR29X10015 | Arm Extension |
|
- |
