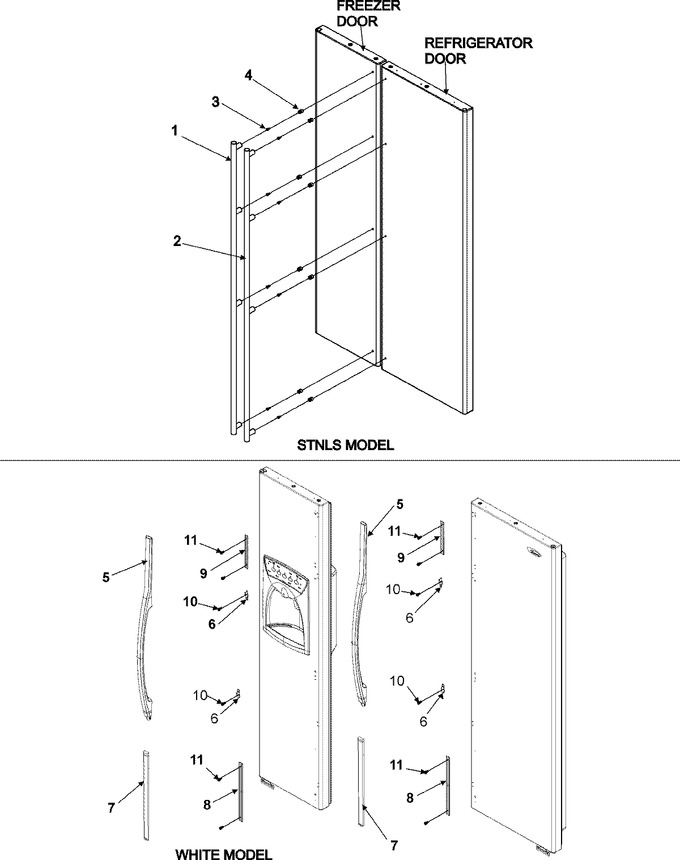

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	67004768		Handle Assy (wht)	10	Appelez-nous	-
6	WP67006852		Clip,handle Butterfly   (Replaces: 12723002)	10			$ 27.25
7	67004297		Trim, Handle 36(wht)	10	Appelez-nous	-
8	67004117		Cleat, Handle	10			$ 6.47
9	67004116		Cleat, Handle	10			$ 6.39
10	WP7101P126-60		Screw, Sm No.10   (Replaces: 67003800)	10		Immediately	$ 8.36
11	67003801		Screw, Sm No.8	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
