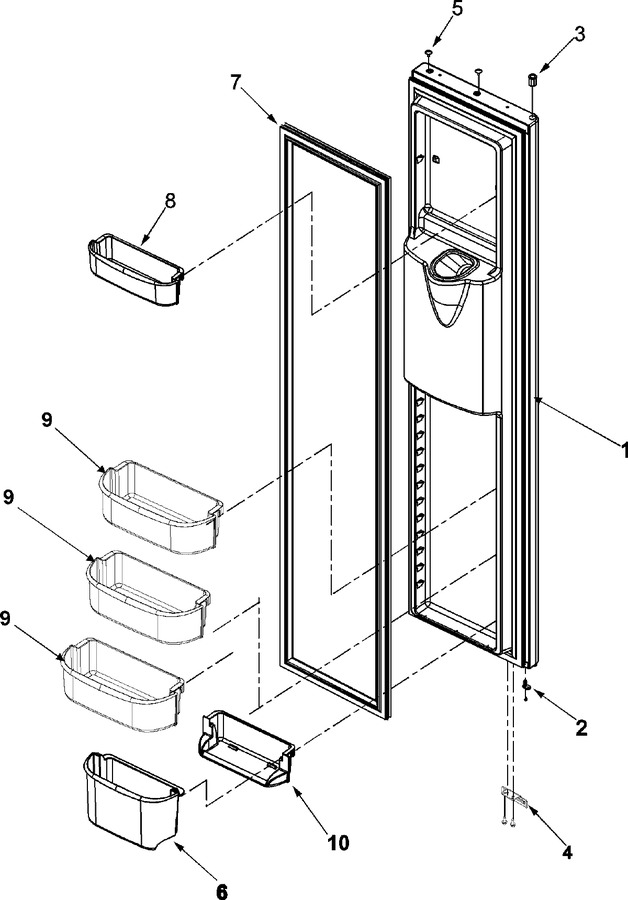

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67005878		Fz Dr Foam Assy (wht)	10	Appelez-nous	-
1	12818472W		Fz Dr Foam Assy (wht)	12	Appelez-nous	-
2	67006493		Closure, Door (blk)	10			$ 19.93
2	12991602		Screw, Tc	10	Appelez-nous	-
3	67004976		Bushing, Door (blk)	10	Appelez-nous	-
4	67006478		Stop, Door (wht)	12	Appelez-nous	-
4	67007020		Stop, Door (blk)	12	Appelez-nous	-
4	WP98165		Screw   (Replaces: 67006287)	10			$ 8.00
4	12636401W		Stop, Door (wht)	10	Appelez-nous	-
4	12636401W		Stop, Door (wht)	11	Appelez-nous	-
5	M0311605		Plug, Button (wht)	10	Appelez-nous	-
6	12557501		Bucket, Lwr Fz Dr	10			$ 17.64
7	67003968		Gasket, Frz. Door (wht)	10			$ 174.50
8	67004772		Bucket, Upr Fz Dr	10	Appelez-nous	-
9	67004290		Bucket, Fz Tilt	10	Appelez-nous	-
10	67004291		Frame, Tilt Bucket	10	Appelez-nous	-
