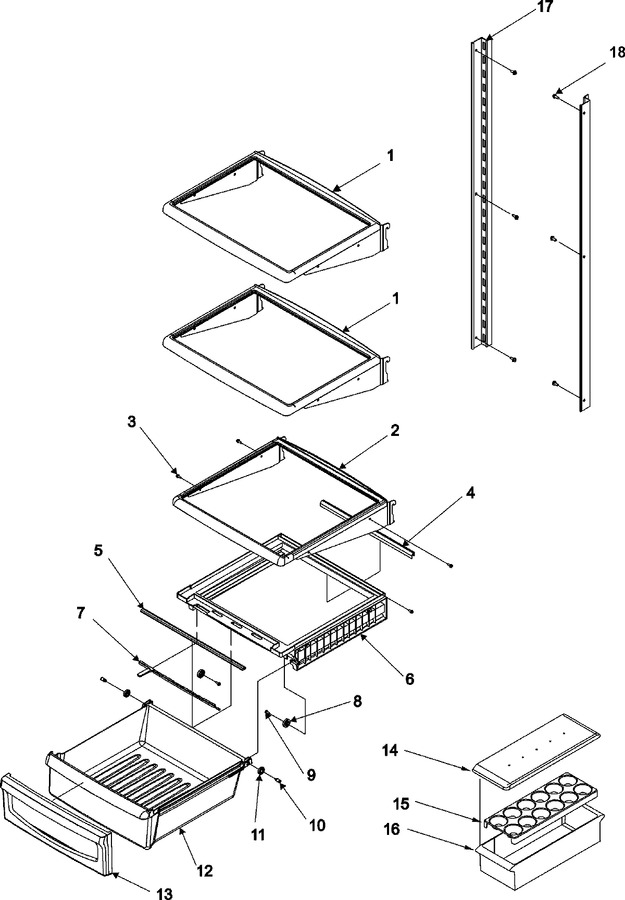

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004072		Shelf, Ref Sta	10	Appelez-nous	-
2	67006882		Shelf, Ref Sta	13	Appelez-nous	-
2	67004200		Shelf, Ref Sta	10	Appelez-nous	-
3	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.02
3	W11233072		Screw   (Replaces: 67006626)	13		Immediately	$ 14.02
4	67004305		Seal, Crisper Frame (rear)	10	Appelez-nous	-
5	67004306		Seal, Front Frame	10	Appelez-nous	-
6	67004307		Frame, Crisper	10	Appelez-nous	-
7	2886302U		Slide, Humidity Control	13	Appelez-nous	-
7	67004298		Slide, Humidity Control (blue)	10	Appelez-nous	-
8	67004169		Roller, Crisper	10			$ 5.81
9	67006692		Screw, Shoulder   (Replaces: M0238105)	10			$ 10.28
9	67006692		Screw	13			$ 10.28
10	67004174		Pin, Roller	10			$ 6.11
11	67004133		Roller, Pan	10	Appelez-nous	-
12	67004304		Pan, Sm Crisper	10	Appelez-nous	-
13	67004308		Front, Crisper Pan	10	Appelez-nous	-
14	10436404		Lid, Utility	10			$ 60.85
15	10436506		Tray, Egg	10			$ 8.28
16	10423131		Bin, Utility	10			$ 31.13
17	67003840		Rail, L/r Lg Sxs	10	Appelez-nous	-
18	67006425		Screw, Sm   (Replaces: 67006400)	13		Immediately	$ 6.95
18	WP90767		Screw, Sm   (Replaces: M0211016)	10		Immediately	$ 7.82

    View Diagram in Separate Window       Print Part List
