| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
12638301S |
|
Trim, Vert Fz (stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 2 |
12638302S |
|
Trim, Vert Ref (stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 3 |
M0275178 |
|
Tape Double Back (roll)k |
10 |
Appelez-nous
|
- |
|
|
|
| 4 |
12626505S |
|
Trim, Top Fz Dr (stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 5 |
12626502S |
|
Trim, Top Ref Dr (stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
WP98165 |
 |
Screw (Replaces: 67006287) |
12 |
|
|
$ 8.00 |
|
|
| 6 |
W11245710 |
|
Screw, Sm (stnls) (Replaces: M0210417) |
10 |
|
Immediately |
$ 14.05 |
|
|
| 7 |
67005205 |
|
Handle, Frz. Door (stnls) |
12 |
Appelez-nous
|
- |
|
|
|
| 7 |
67004071 |
|
Handle, Extruded (stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 7 |
67005128 |
|
Handle, Ref. Door (stnls) |
12 |
Appelez-nous
|
- |
|
|
|
| 8 |
WP489399 |
 |
Screw, Se (Replaces: M0232929) |
10 |
|
|
$ 6.95 |
|
|
| 8 |
WP489128 |
 |
Screw (Replaces: 67006767) |
12 |
|
|
$ 10.88 |
|
|
| 9 |
12315101 |
|
Clip |
10 |
Appelez-nous
|
- |
|
|
|
| 10 |
67005155 |
|
Panel, Door Sxs Ref |
11 |
Appelez-nous
|
- |
|
|
|
| 10 |
12689732S |
|
Panel-ref Door |
12 |
Appelez-nous
|
- |
|
|
|
| 10 |
12689701 |
|
Panel, Ext Ref (stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 11 |
67005156 |
|
Panel, Door Sxs Fz Upr |
11 |
Appelez-nous
|
- |
|
|
|
| 11 |
12689702 |
|
Panel, Ext Up Fz (stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 12 |
12689703 |
|
Panel, Ext Lower Fz (stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 12 |
67005157 |
|
Panel, Door Sxs Fz Lwr |
11 |
Appelez-nous
|
- |
|
|
|
| 13 |
12689801 |
|
Spacer, Ext Ref Panel |
10 |
Appelez-nous
|
- |
|
|
|
| 14 |
12689802 |
|
Spacer, Up Ext Fz Panel |
10 |
Appelez-nous
|
- |
|
|
|
| 15 |
12689803 |
|
Spacer, Lower Fz Panel |
10 |
Appelez-nous
|
- |
|
|
|
| 16 |
M0275163 |
|
Tape Per Roll |
10 |
Appelez-nous
|
- |
|
|
|
| NI |
WP98165 |
|
Screw, Sm (Replaces: M0211018) |
10 |
|
|
$ 8.00 |
|
|
| NI |
67003750 |
|
Ext., Ref. Door (blk) |
10 |
Appelez-nous
|
- |
|
|
|
| NI |
67003749 |
|
Ext., Frz. Door (blk) |
10 |
Appelez-nous
|
- |
|
|
|

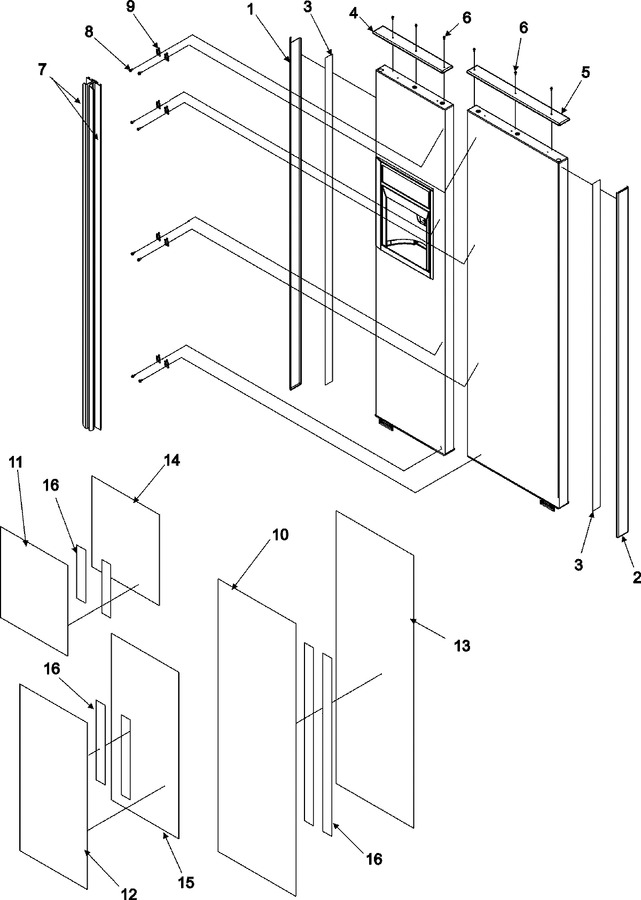

View Diagram in Separate Window
Print Part List
