Diagram # Part Number Description Series Availability Ships Price Add to Cart
91 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

92 B4143101 Strainer Appelez-nous -
94 D5404401 Capillary Appelez-nous -
95 A3030302 Gasket Appelez-nous -
96 Y052721 Nut   (Replaces: M0281006) Special Order $ 24.95

97 A4685101 Clamp Appelez-nous -
98 C5271704 Condenser Assy Appelez-nous -
101 A3318502 Elbow Appelez-nous -
102 C5816302 Tube-sub Cooler Appelez-nous -
103 A3030302 Gasket Appelez-nous -
104 B4792204 Tie Brace Appelez-nous -
105 W11233072 Screw   (Replaces: M0211631) In-Stock Immediately $ 14.72

107 A3045502 Grommet Appelez-nous -
108 C5258702 Cord Set, Unit Power Appelez-nous -
109 C5271301 Fan Shroud Appelez-nous -
114 D5479603 Evaporator Coil Appelez-nous -
115 A3030331 Gasket-per Ft Appelez-nous -
116 A3318402 Elbow Appelez-nous -
117 B4766001 Cond Barrier Appelez-nous -
118 D5375302 Filler Block Appelez-nous -
119 A3030301 Gasket (inch) Appelez-nous -
120 A3030302 Gasket Appelez-nous -
121 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

124 A0372901 Spacer Appelez-nous -
125 M0103501 Clamp Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

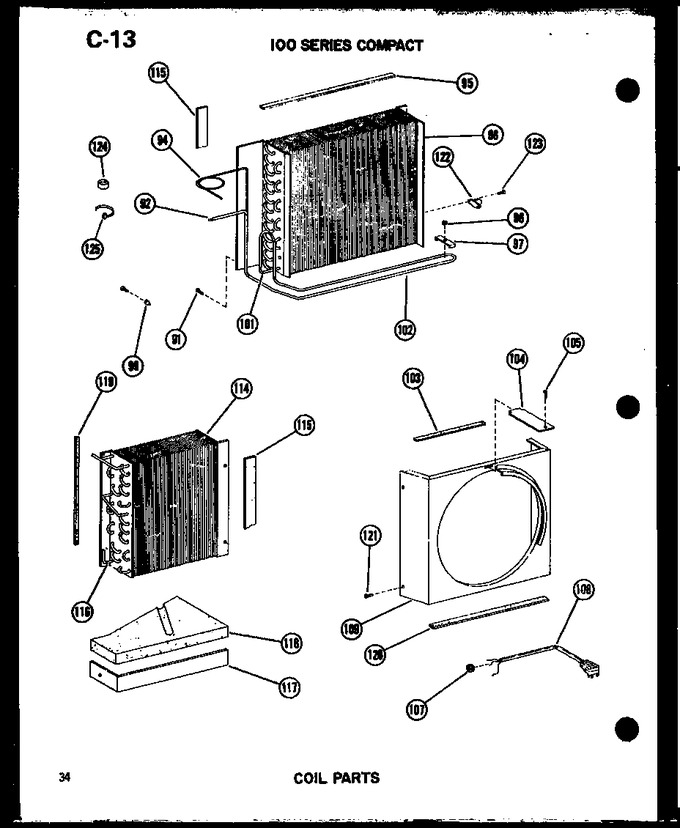

Diagram for 109-5J (BOM: P5433668R)
