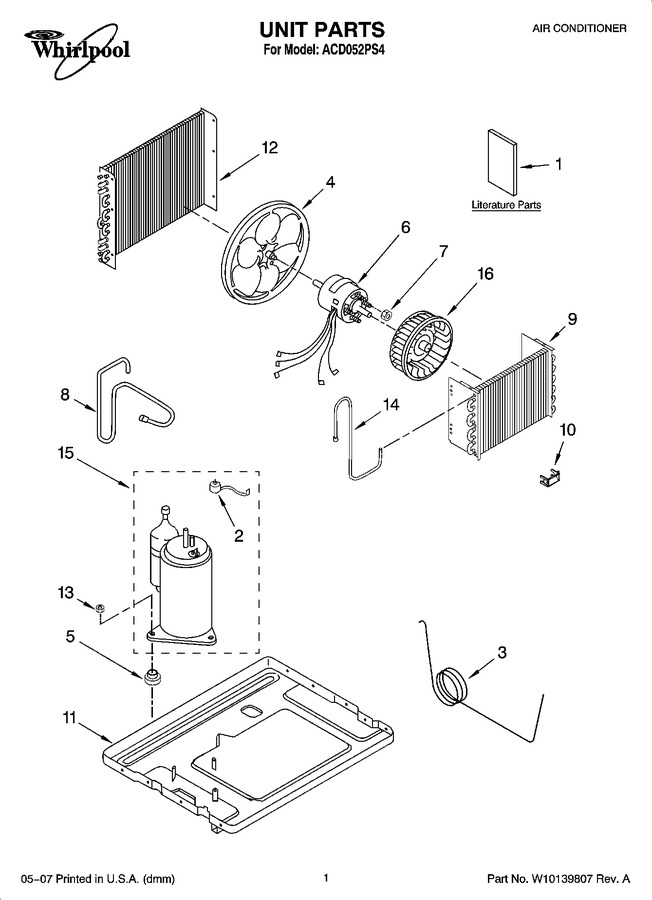

01 - Unit Parts
02 - Air Flow And Control Parts
03 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8209797 | Use & Care Guide |
|
- | |||||
| 1 | 8209927 | Guide, Energy |
|
- | |||||
| 1 | 8209928 | Wiring Diagram |
|
- | |||||
| 2 | 8209732 | Overload |
|
- | |||||
| 3 | 8209919 | Tube, Restrictor |
|
- | |||||
| 4 | 8209866 | Blade, Fan |
|
- | |||||
| 5 | 8209829 | Grommet |
|
- | |||||
| 6 | 8209913 | Motor, Fan |
|
- | |||||
| 7 | 8209660 | Nut, Hex |
|
- | |||||
| 8 | 8209934 | Tube, Discharge |
|
- | |||||
| 9 | 8209904 | Evaporator |
|
- | |||||
| 10 | 8209771 | Clip, Thermostat |
|
- | |||||
| 11 | 8209905 | Base |
|
- | |||||
| 12 | 8209911 | Condenser |
|
- | |||||
| 13 | 8209668 | Nut, Hex |
|
- | |||||
| 14 | 8209935 | Tube, Suction |
|
- | |||||
| 15 | 8209802 | Compressor Assembly |
|
- | |||||
| 16 | 8209673 | Wheel, Blower |
|
- |
