SELECT A DIAGRAM

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts

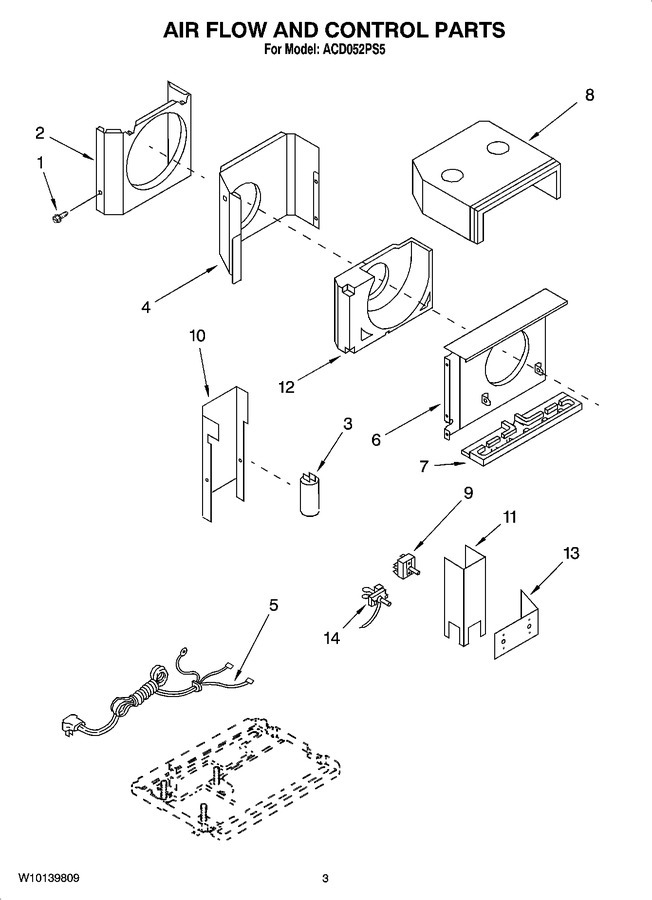

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11245710		Screw   (Replaces: 8209688)			Immediately	$ 13.28
2	8209910		Shroud, Condenser		Appelez-nous	-
3	8209719		Capacitor, Running		Appelez-nous	-
4	8209914		Wall, Dividing		Appelez-nous	-
5	8215073		Cord, Appliance		Appelez-nous	-
6	8209917		Shroud, Evaporator		Appelez-nous	-
7	8209906		Pan, Evaporator		Appelez-nous	-
8	8209915		Hood, Air Housing		Appelez-nous	-
9	8209683		Switch, Rotary		Appelez-nous	-
10	8209921		Panel, Rear- Control Box		Appelez-nous	-
11	8209922		Panel, Front Control Box		Appelez-nous	-
12	8209916		Housing, Air		Appelez-nous	-
13	8209923		Plate, Front- Control Box		Appelez-nous	-
14	8209689		Control, Temp.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
