01 - Unit Parts
02 - Air Flow And Control Parts

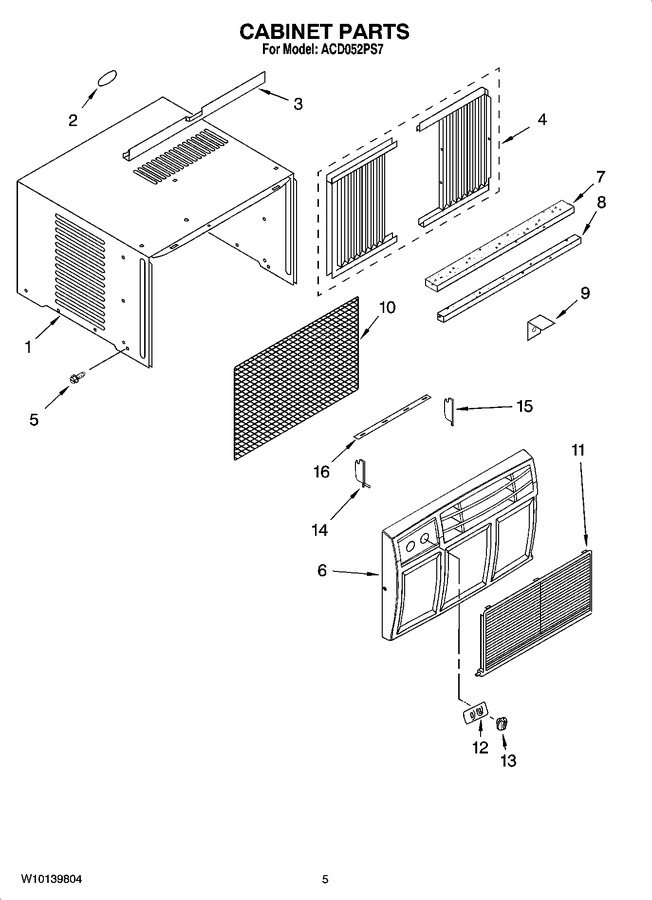

03 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8209909 | Cabinet |
|
- | |||||
| 2 | 8209738 | Nameplate, Rear |
|
- | |||||
| 3 | 8209933 | Channel, Top |
|
- | |||||
| 4 | 8209907 | Curtain, Assembly Right & Left Side (includes Item 3) |
|
- | |||||
| 5 | 8209777 | Screw |
|
- | |||||
| 6 | 8201507 | Front, Cabinet |
|
$ 129.17 | |||||
| 7 | 8209931 | Seal-strip, Wide |
|
- | |||||
| 8 | 8209932 | Seal-strip, Narrow |
|
- | |||||
| 9 | 8209930 | Bracket, Window Lock |
|
- | |||||
| 10 | 8209898 | Filter |
|
- | |||||
| 11 | 8209899 | Grille, Front |
|
- | |||||
| 12 | 8209924 | Escutcheon |
|
- | |||||
| 13 | 8209925 | Knob |
|
- | |||||
| 14 | 8209902 | Louver, W/handle |
|
- | |||||
| 15 | 8209901 | Louver |
|
- | |||||
| 16 | 8209903 | Connector, Louver |
|
- |
