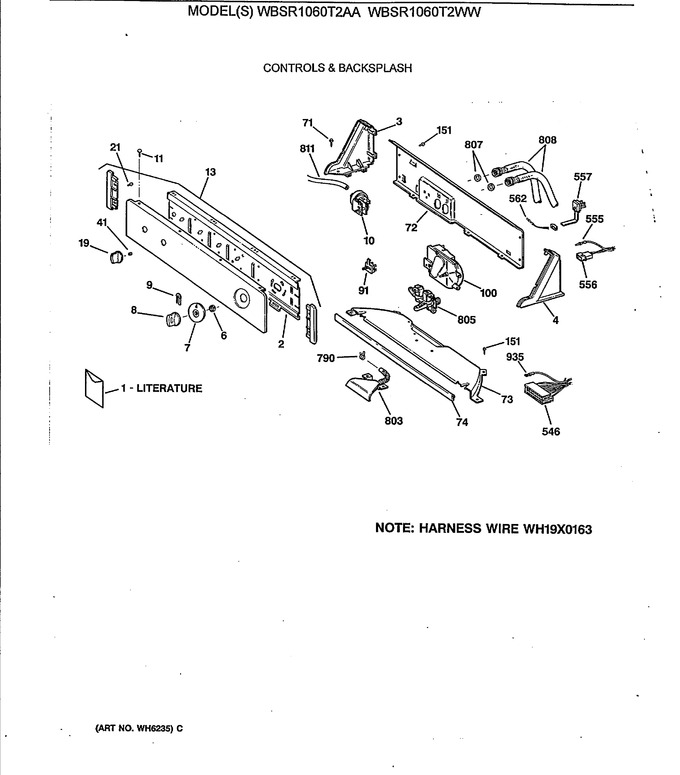

1 - Controls & Backsplash
2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator
4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-15020 | Pm Sheet Mini Manual |
|
- | |||||
| 1 | 31-1737 | Pm Instruction Instal. |
|
- | |||||
| 1 | 49-9822 | Pm Manual Use & Care |
|
- | |||||
| 2 | WH46X340 | Support Switch |
|
- | |||||
| 3 | WH42X2397 | End Cap Lh Wh |
|
- | |||||
| 4 | WH42X2398 | End Cap Rh Wh |
|
- | |||||
| 6 | WH2X650 | Ring Comp |
|
- | |||||
| 7 | WH11X139 | Dial Asm |
|
- | |||||
| 8 | WH1X2754 | Knob Asm Control |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WG04F03547 | Switch Pressure (Replaces: WH12X998) |
|
Immediately | $ 36.12 | ||||
| 11 | WH2X1206 | Scr 8-18 Abflt 5/8 Sn Wh |
|
- | |||||
| 13 | WH42X2427 | Control Panel Asm |
|
- | |||||
| 19 | WH1X2721 | Knob & Clip Asm Wh |
|
$ 9.15 | |||||
| 21 | WH2X1185 | Scr 8-18 B Ihw 5/16 S |
|
- | |||||
| 26 | WH2X1218 | Scr 8-18 Pnp 5/16 S |
|
- | |||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 71 | WH2X1205 | Scr 8-18 B 1/2 Hxw P |
|
- | |||||
| 72 | WH46X337 | Panel Back |
|
- | |||||
| 73 | WH46X341 | Cover Bottom |
|
- | |||||
| 74 | WH8X379 | Gasket Backsplash |
|
- | |||||
| 91 | WG04F03769 | Switch Rotary (Replaces: WH12X999) |
|
Immediately | $ 47.74 | ||||
| 100 | WH12X1030 | Timer Asm |
|
- | |||||
| 151 | WH2X1210 | Scr 8-18 B Ihw 1/2 S N |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 |
|
- | |||||
| 546 | WH12X870 | Housing Terminal Bk |
|
- | |||||
| 550 | WE2X281 | Scr 8-15 Hx 3/8 S |
|
- | |||||
| 555 | WB17X5053 | Terminal |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 557 | WH19X225 | Cordset Asm |
|
- | |||||
| 562 | WB17X5054 | Terminal |
|
- | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 803 | WH41X366 | Water Inlet & Hose |
|
- | |||||
| 805 | WH13X86 | Valve Asm Water |
|
- | |||||
| 807 | WH2X42 | Hose Washer |
|
- | |||||
| 808 | WH41X58 | Inlet Hose |
|
- | |||||
| 811 | WG04F03638 | Hose Pressure Switch (Replaces: WH41X365) |
|
Immediately | $ 15.88 | ||||
| 935 | WD1X1434 | Terminal Special |
|
- |
