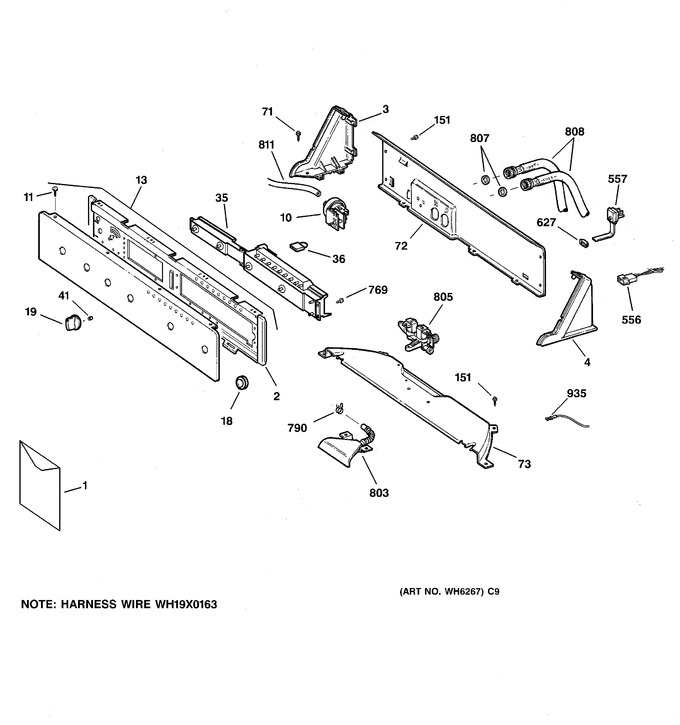

1 - Controls & Backsplash
2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator
4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-15484 | Pm Sheet Mini Manual |
|
- | |||||
| 1 | 49-30081 | Pm Manual Use & Care |
|
- | |||||
| 1 | 31-15441 | Pm Instruction Install |
|
- | |||||
| 2 | WH46X10048 | Support Switch |
|
- | |||||
| 3 | WH42X2397 | End Cap Lh Wh |
|
- | |||||
| 4 | WH42X2398 | End Cap Rh Wh |
|
- | |||||
| 10 | WH12X10173 | Switch Pressure |
|
- | |||||
| 11 | WH02X10089 | Scr 8-18 Ab Flt 9/16 Sn |
|
- | |||||
| 13 | WH42X10212 | Control Panel Asm |
|
- | |||||
| 18 | WG04F03527 | Switch Start/stop (Replaces: WH01X10088) |
|
$ 25.41 | |||||
| 19 | WH1X2721 | Knob & Clip Asm Wh |
|
$ 9.15 | |||||
| 35 | WH12X10187 | Controls Asm |
|
- | |||||
| 36 | WH12X10094 | Connector, Model Select |
|
- | |||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 71 | WH2X1205 | Scr 8-18 B 1/2 Hxw P |
|
- | |||||
| 72 | WH46X10035 | Panel Back |
|
- | |||||
| 73 | WH46X10080 | Cover Bottom |
|
- | |||||
| 151 | WH02X10126 | Scr 8-18 B 1hw 1/2 Sn |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 557 | WH19X10021 | Cord Power Asm |
|
- | |||||
| 627 | WH12X10025 | Strain Relief |
|
- | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 803 | WG04F03731 | Hose & Water Inlet (Replaces: WH41X10037) |
|
Immediately | $ 12.71 | ||||
| 805 | WH13X86 | Valve Asm Water |
|
- | |||||
| 807 | WH2X42 | Hose Washer |
|
- | |||||
| 808 | WH41X58 | Hose Asm Intake |
|
- | |||||
| 811 | WG04F03638 | Hose Pressure (Replaces: WH41X365) |
|
Immediately | $ 15.88 | ||||
| 935 | WD1X1434 | Terminal Special |
|
- |
