View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Unit Parts
02 - Airflow And Control Parts

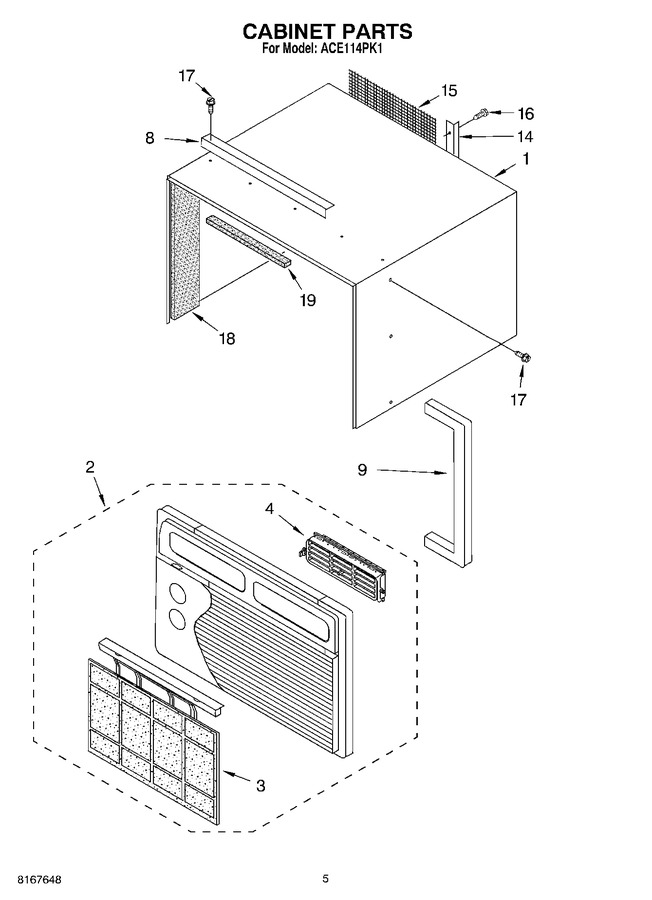

03 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 789979 | Cabinet Assembly (includes Insulation And Item No. 15) |
|
- | |||||
| 2 | 789995 | Front Assembly |
|
- | |||||
| 3 | 789980 | Filter, Air |
|
- | |||||
| 8 | 789998 | Trim, Frame (top And Bottom) |
|
- | |||||
| 9 | 789997 | Trim, Frame (side) |
|
- | |||||
| 14 | 8199510 | Baffle, Condenser |
|
- | |||||
| 15 | 789899 | Guard, Wire |
|
- | |||||
| 16 | 3148443 | Screw No.8 X 1/4 |
|
- | |||||
| 17 | 4380603 | Screw |
|
- | |||||
| 18 | 789739 | Insulation, Cabinet (side) ((left Side)) |
|
- | |||||
| 18 | 789738 | Insulation, Cabinet (side) ((right Side)) |
|
- | |||||
| 19 | 4378882 | Sleeve, Cabinet |
|
- | |||||
| 19 | 1181046 | Seal, Strip (top Rear) |
|
- |
