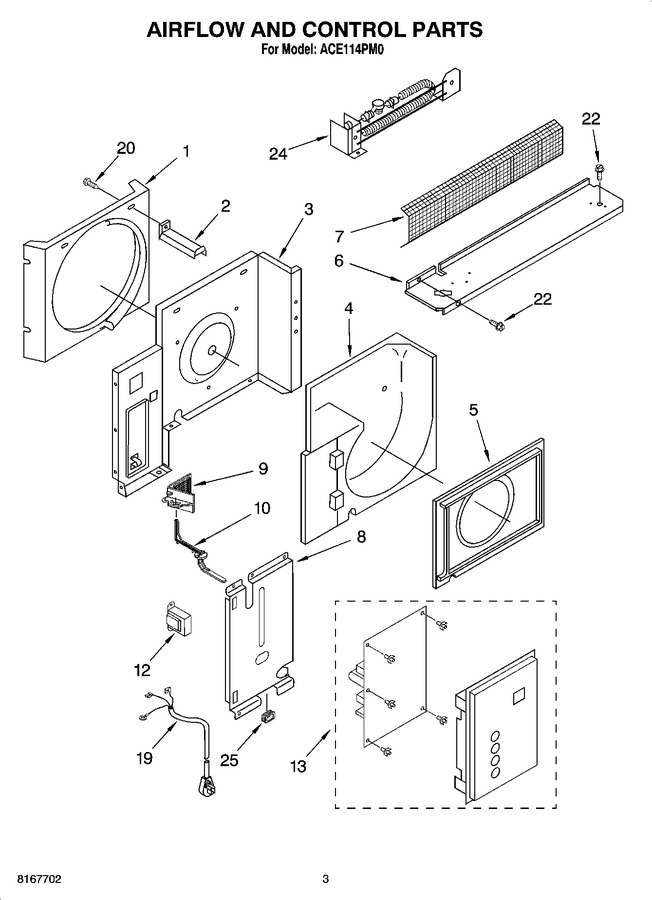

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8199548		Shroud, Condenser		Appelez-nous	-
2	789891		Support, Unit		Appelez-nous	-
3	8199543		Wall, Dividing		Appelez-nous	-
4	8199544		Scroll, Blower		Appelez-nous	-
5	789875		Shroud, Evaporator		Appelez-nous	-
6	8199545		Cover, Evaporator		Appelez-nous	-
7	789645		Screen, Air Discharge		Appelez-nous	-
8	8199541		Panel, Control		Appelez-nous	-
9	789991		Door, Exhaust		Appelez-nous	-
10	789992		Actuator, Door		Appelez-nous	-
12	8199542		Transformer		Appelez-nous	-
13	8199540		Control Assembly		Appelez-nous	-
19	789946		Cable, Appliance		Appelez-nous	-
20	4363526		Screw 8 X 1/2		Appelez-nous	-
22	3148443		Screw, 8 X 1/4		Appelez-nous	-
24	789952		Heater Assembly		Appelez-nous	-
25	789806		Relief, Strain		Appelez-nous	-
