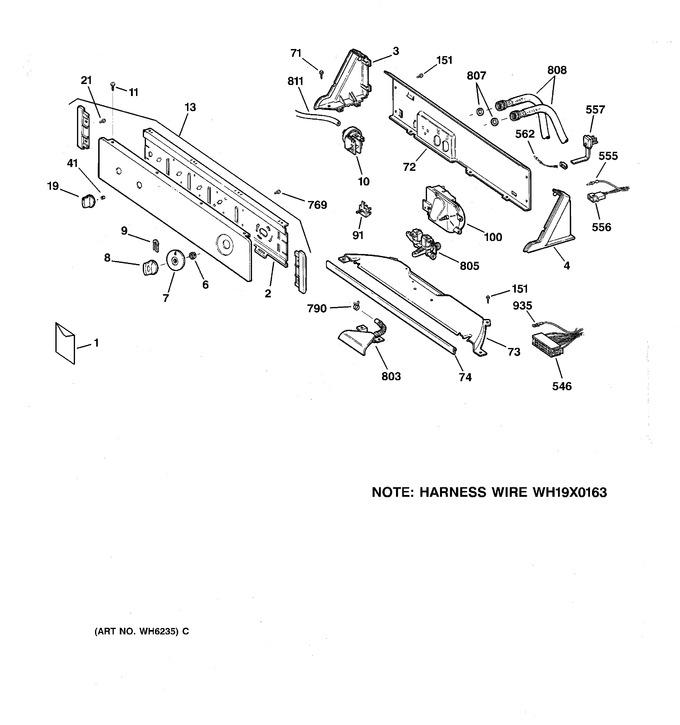

1 - Controls & Backsplash
2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator
4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-15097 | Mini Manual |
|
- | |||||
| 1 | 31-2814 | Install Instructions |
|
- | |||||
| 1 | 49-9905 | Manual Use & Care |
|
- | |||||
| 2 | WH46X340 | Support Switch |
|
- | |||||
| 3 | WH42X2397 | End Cap Lh Wh |
|
- | |||||
| 4 | WH42X2398 | End Cap Rh Wh |
|
- | |||||
| 6 | WH2X650 | Ring Comp |
|
- | |||||
| 7 | WH11X139 | Dial Asm |
|
- | |||||
| 8 | WH1X2754 | Knob Asm Control |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WG04F03547 | Switch Pressure (Replaces: WH12X998) |
|
Immediately | $ 36.12 | ||||
| 11 | WH2X1206 | Scr 8-18 Abflt 5/8 Sn Wh |
|
- | |||||
| 13 | WH42X2517 | Control Panel Asm |
|
- | |||||
| 19 | WH1X2721 | Knob & Clip Asm Wh |
|
$ 9.15 | |||||
| 21 | WH2X1185 | Scr 8-18 B Ihw 5/16 S |
|
- | |||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 69 | WH2X1222 | Support Board |
|
- | |||||
| 71 | WH2X1205 | Scr 8-18 B 1/2 Hxw P |
|
- | |||||
| 72 | WH42X2513 | Panel Back |
|
- | |||||
| 73 | WH46X341 | Cover Bottom |
|
- | |||||
| 74 | WH8X379 | Gasket Backsplash |
|
- | |||||
| 91 | WG04F03769 | Switch Rotary Temp. (Replaces: WH12X999) |
|
Immediately | $ 47.74 | ||||
| 100 | WH12X1072 | Timer 240, 50 Hz |
|
$ 215.43 | |||||
| 151 | WH2X1210 | Scr 8-18 B Ihw 1/2 S N |
|
- | |||||
| 546 | WH12X870 | Housing Terminal Bk |
|
- | |||||
| 555 | WB17X5053 | Terminal |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 557 | WH19X314 | Cord Power Asm |
|
- | |||||
| 562 | WB17X5054 | Terminal |
|
- | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 803 | WH41X366 | Water Inlet & Hose |
|
- | |||||
| 805 | WH12X1075 | Valve Water 220/240,50hz |
|
- | |||||
| 805 | WH46X360 | Insulation, Water Valve |
|
- | |||||
| 807 | WH2X42 | Hose Washer |
|
- | |||||
| 808 | WH41X400 | Hose Inlet Hot Metric |
|
- | |||||
| 808 | WH41X403 | Hose Inlet Cold Metric |
|
- | |||||
| 811 | WG04F03638 | Hose Pressure Switch (Replaces: WH41X365) |
|
Immediately | $ 15.88 | ||||
| 935 | WD1X1434 | Terminal Special |
|
- |
