1 - Controls & Backsplash
2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator

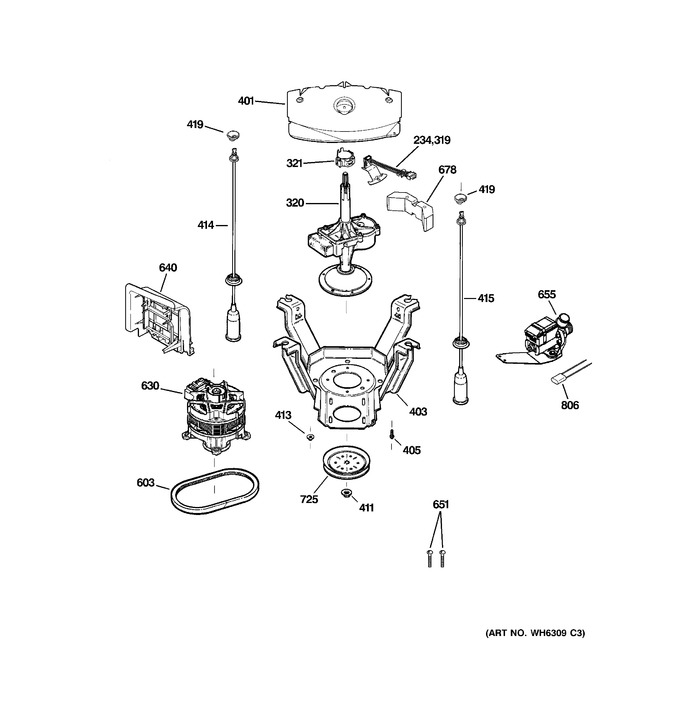

4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 234 | WE2X154 | Palnut |
|
$ 55.13 | |||||
| 319 | WH12X10230 | Speed Sensor Asm |
|
- | |||||
| 320 | WH38X10002 | Transmission & Brake Asm |
|
- | |||||
| 321 | WH12X10231 | Speed Sensor Magnet Asm |
|
- | |||||
| 401 | WG04L02777 | Shield Tub (Replaces: WH45X10046) |
|
$ 37.17 | |||||
| 403 | WH17X10003 | Leg & Platform Weld Asm |
|
- | |||||
| 405 | WH2X1201 | Scr 1/4-20 B Hxw 3/4 Sns |
|
- | |||||
| 411 | WG04F03630 | Nut Pulley (Replaces: WH2X1203) |
|
$ 3.97 | |||||
| 413 | WH2X1204 | Nut Motor Hex |
|
- | |||||
| 414 | WG04A01215 | Rod & Spring Asm (Replaces: WH16X545) |
|
$ 66.76 | |||||
| 415 | WG04F01776 | Rod & Spring Asm/yellow (Replaces: WH16X543) |
|
Immediately | $ 67.82 | ||||
| 419 | WG04F04831 | Socket Rod Support (Replaces: WH01X10001) |
|
$ 12.71 | |||||
| 603 | WG04F03608 | Belt (Replaces: WH1X2026) |
|
Immediately | $ 44.02 | ||||
| 630 | WH20X10017 | Motor Inverter |
|
- | |||||
| 640 | WH12X10229 | Invertor High Speed Asm |
|
- | |||||
| 651 | WH02X10123 | Scr 1/4-20 Tpt 1h 1/2 Sn |
|
- | |||||
| 655 | WG04A03417 | Pump (Replaces: WH23X10013) |
|
Immediately | $ 188.22 | ||||
| 678 | WH1X2805 | Counterweight |
|
- | |||||
| 725 | WG04F04793 | Pulley Transmission (Replaces: WH7X126) |
|
$ 52.50 | |||||
| 806 | WH12X10241 | Snubber |
|
- |
