1 - Controls & Backsplash

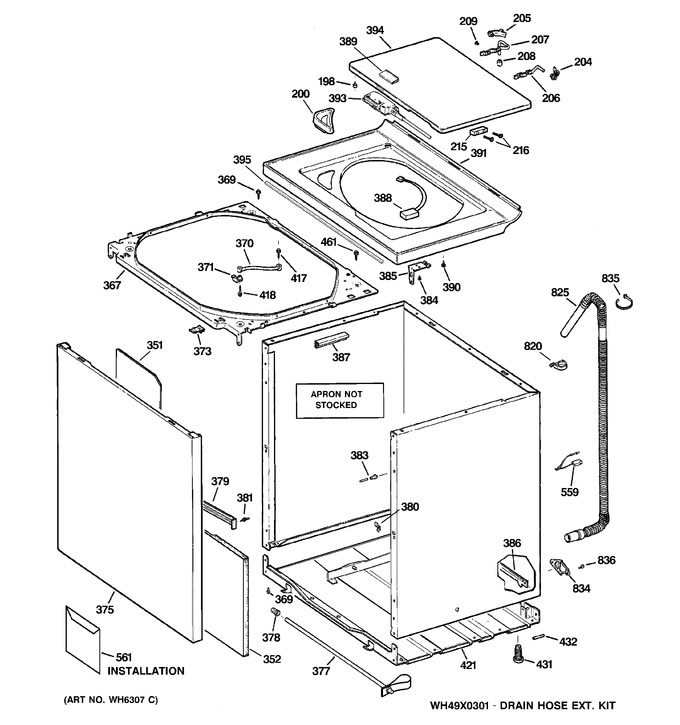

2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator
4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 198 | WH1X2722 | Bumper Lid |
|
- | |||||
| 200 | WG04F00463 | Funnel Bleach (Replaces: WH01X10057) |
|
$ 58.52 | |||||
| 204 | WG04F03612 | Bushing Hinge (single) (Replaces: WH1X2741) |
|
$ 4.04 | |||||
| 205 | WH01X10025 | Bushing Hinge-front Open |
|
- | |||||
| 206 | WH1X2740 | Wireform Hinge |
|
- | |||||
| 207 | WH1X2743 | Hinge Wireform (long) |
|
- | |||||
| 208 | WH1X2742 | Bumper Hinge |
|
- | |||||
| 209 | WH2X1211 | Screw |
|
- | |||||
| 215 | WH12X10092 | Magnet Asm |
|
- | |||||
| 216 | WH02X10063 | Scr 8-16 B Flp .625 Zn |
|
- | |||||
| 351 | WH46X353 | Damper Front Panel |
|
- | |||||
| 352 | WH46X10067 | Insulation Pack Asm |
|
- | |||||
| 367 | WH46X364 | Weld Asm Rod Support |
|
- | |||||
| 369 | WW01A00097 | Scr 8-18 Ab Ihw 7/16 Sn (Replaces: WH2X1217) |
|
$ 3.97 | |||||
| 370 | WH01X10046 | Strap Damping |
|
- | |||||
| 371 | WG04F02343 | Retainer Strap (Replaces: WH1X2726) |
|
Immediately | $ 12.71 | ||||
| 373 | WG04A00398 | Clip Locking (Replaces: WH02X10058) |
|
$ 6.35 | |||||
| 375 | WH46X10051 | Panel Front Wh |
|
- | |||||
| 377 | WG04L01526 | Bar Shipping (Replaces: WH46X344) |
|
$ 22.75 | |||||
| 378 | WH1X2745 | Button Plug |
|
- | |||||
| 379 | WH16X514 | Brace |
|
- | |||||
| 380 | WH2X1207 | Clip Ground |
|
- | |||||
| 381 | WH2X1190 | Stud Grounding |
|
- | |||||
| 383 | WH2X1189 | Pin Alignment |
|
- | |||||
| 384 | WH01X10109 | Scr 8-15 A 3/4 Sp Hxw |
|
- | |||||
| 384 | WH01X10170 | Scr 6-20 B Trt 3/8 S |
|
- | |||||
| 385 | WH1X2723 | Cover Clip |
|
- | |||||
| 386 | WG04L01525 | Bar Self Leveling (Replaces: WH46X10094) |
|
$ 49.56 | |||||
| 387 | WH41X10036 | Conduit |
|
- | |||||
| 388 | WH12X10141 | Lid Switch Asm |
|
- | |||||
| 389 | WH01X10196 | Grommet Lid Lock |
|
- | |||||
| 390 | WH1X2724 | Isolator |
|
- | |||||
| 391 | WH44X10113 | Cover Asm Finished Wh |
|
- | |||||
| 393 | WH01X10202 | Lid Lock Asm |
|
- | |||||
| 394 | WH44X10112 | Lid Asm Finished Wh |
|
- | |||||
| 395 | WH46X10091 | Foam Barrier |
|
- | |||||
| 417 | WH2X694 | Scr 10-12 A Hx 1/2 S |
|
- | |||||
| 418 | WH02X10003 | Scr 8-18 B Ihw 1 S |
|
- | |||||
| 421 | WH46X10079 | Base Asm |
|
- | |||||
| 431 | WG04L00346 | Leg Leveling (Replaces: WH2X1187) |
|
$ 6.35 | |||||
| 432 | WG04A00392 | Pin Roll (Replaces: WH2X1188) |
|
$ 6.35 | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 559 | WH12X538 | Housing Terminal |
|
- | |||||
| 561 | WH49X10017 | Pk Pack Asm Installation |
|
- | |||||
| 820 | WW01A00014 | Clip Anti-siphon (Replaces: WH1X2725) |
|
$ 3.97 | |||||
| 825 | WG04F00503 | Hose Drain External (Replaces: WH41X367) |
|
Immediately | $ 74.78 | ||||
| 834 | WG04A00640 | Retainer Hose (Replaces: WH16X513) |
|
Immediately | $ 4.37 | ||||
| 835 | WG04A00755 | Strap (Replaces: WH1X2594) |
|
$ 19.06 | |||||
| 836 | WG04A01370 | Scr 8-18 Ab Ihwp 7/8 S (Replaces: WH02X10002) |
|
$ 3.97 |
