SELECT A DIAGRAM

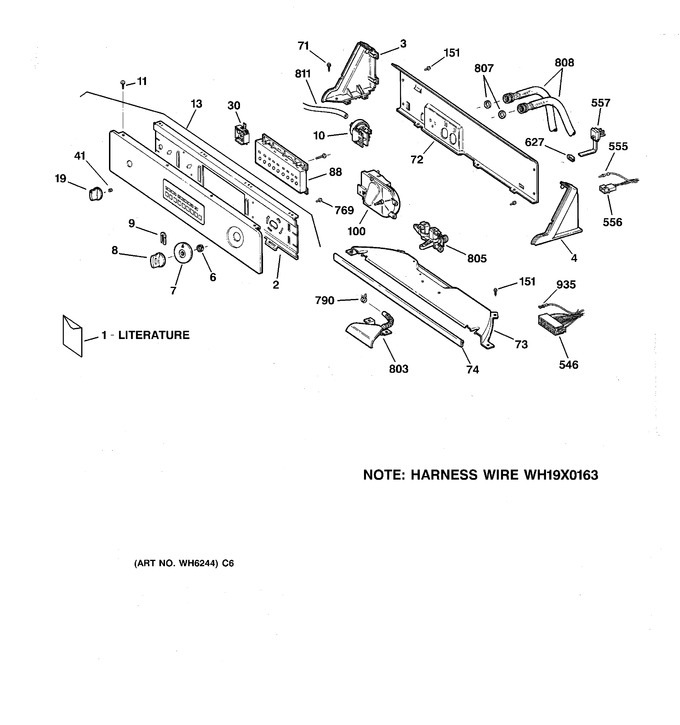

1 - Controls & Backsplash


2 - Cabinet, Cover & Front Panel


3 - Tub, Basket & Agitator


4 - Suspension, Pump & Drive Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-9924		Pm Manual Use & Care		Appelez-nous	-
1	31-15251		Pm Sheet Mini Manual		Appelez-nous	-
1	31-1748		Pm Instruction Install		Appelez-nous	-
2	WH46X10020		Support Switch		Appelez-nous	-
3	WH42X2387		End Cap		Appelez-nous	-
4	WH42X2388		End Cap		Appelez-nous	-
6	WH2X650		Ring Comp		Appelez-nous	-
7	WH11X139		Dial Asm		Appelez-nous	-
8	WH1X2754		Knob Asm Control		Appelez-nous	-
9	WG04A00788		Clip Spring   (Replaces: WH1X2117)			Immediately	$ 4.04
10	WH12X1006		Switch Pressure		Appelez-nous	-
11	WH2X1206		Scr 8-18 Abflt 5/8 Sn Wh		Appelez-nous	-
13	WH42X2439		Control Panel Asm		Appelez-nous	-
19	WH1X2721		Knob Clip Asm Wh				$ 9.15
30	WH12X1074		Beeper		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
71	WH2X1205		Scr 8-18 B 1/2 Hxw P		Appelez-nous	-
72	WH46X337		Panel Back		Appelez-nous	-
73	WH46X341		Cover Bottom		Appelez-nous	-
74	WH8X379		Gasket Backsplash		Appelez-nous	-
88	WH12X1032		Switch Program - P5		Appelez-nous	-
100	WH12X1034		Timer Asm		Appelez-nous	-
151	WH2X1210		Scr 8-18 B Ihw 1/2 S N		Appelez-nous	-
546	WH12X870		Housing Terminal Bk		Appelez-nous	-
555	WB17X5053		Terminal		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
557	WH19X311		Cordset Asm		Appelez-nous	-
627	WH12X10025		Strain Relief		Appelez-nous	-
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
790	WH1X2036		Clamp Hose		Appelez-nous	-
803	WH41X366		Water Inlet Hose		Appelez-nous	-
805	WH13X86		Valve Water		Appelez-nous	-
807	WH2X42		Hose Washer		Appelez-nous	-
808	WH41X58		Hose Asm Intake		Appelez-nous	-
811	WG04F03638		Hose Pressure Switch   (Replaces: WH41X365)			Immediately	$ 15.88
935	WD1X1434		Terminal Special		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
