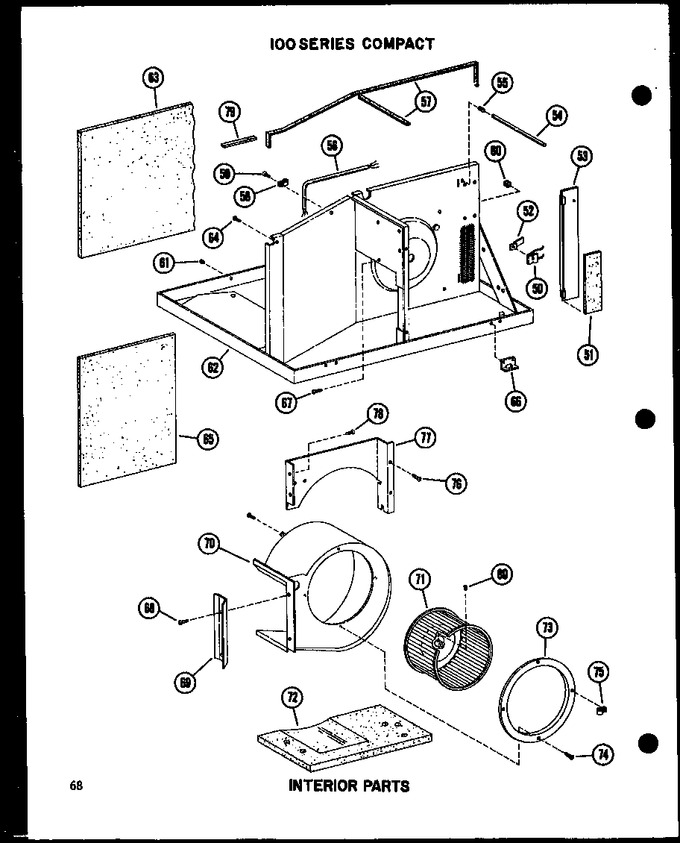

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
50	B4778001		Spring		Appelez-nous	-
51	B5107609		Gasket		Appelez-nous	-
52	A4624301		Retainer		Appelez-nous	-
53	B5131401		Wldmt,damper Door		Appelez-nous	-
54	A4608604		Rod-damper Door		Appelez-nous	-
55	M0114001		Speed Clip		Appelez-nous	-
57	A3030302		Gasket		Appelez-nous	-
58	M0102303		Clamp		Appelez-nous	-
59	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
60	A3023301		Grommet		Appelez-nous	-
61	B5100401		Grommet		Appelez-nous	-
62	D5413106		Base Pan Wldmt		Appelez-nous	-
63	D5376602		Insulation		Appelez-nous	-
64	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
65	A4600901		Insulation		Appelez-nous	-
66	A4573601		Support		Appelez-nous	-
67	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
68	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
69	B5126201		Baffle		Appelez-nous	-
70	D5351201		Weld Evap Scroll		Appelez-nous	-
71	D5318801		Blower Wheel		Appelez-nous	-
72	C5258002		Filler Block		Appelez-nous	-
73	C5259201		Inlet Ring		Appelez-nous	-
74	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
75	M0102301		Clamp		Appelez-nous	-
76	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
77	C5298201		Shield		Appelez-nous	-
78	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
79	A3030303		Gasket (per Foot)		Appelez-nous	-
80	M0210516		Screw		Appelez-nous	-
