SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

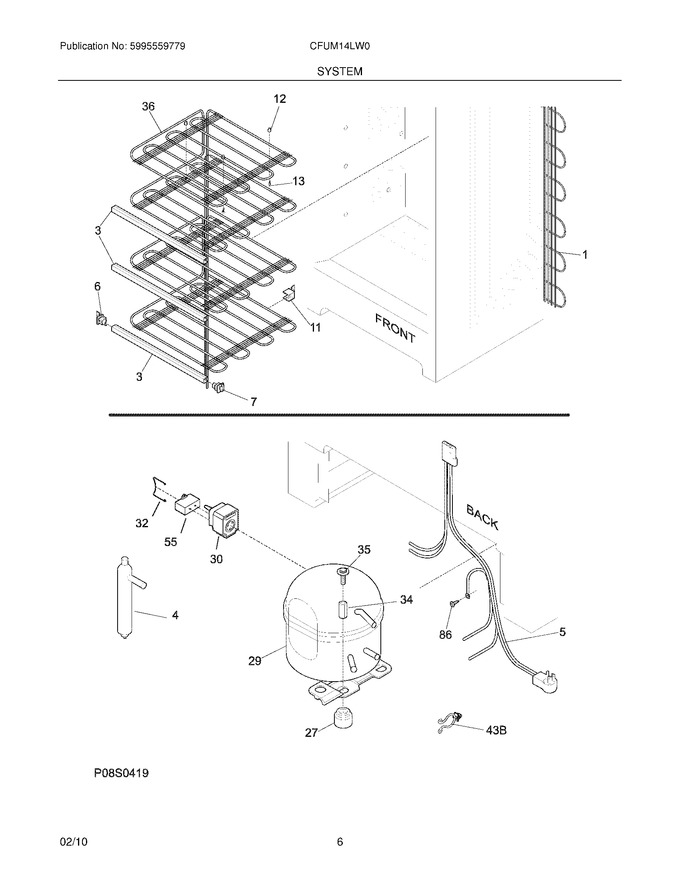

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304509722		Trim-shelf,white ,evaporator   (Replaces: 216847804)				$ 31.33
4	216987500		Drier-filter		Appelez-nous	-
6	297001600		Support-shelf,front Lh				$ 20.09
7	297001500		Support-shelf,front Rh				$ 20.09
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138901		Screw,hex Sems ,8-18ab X 1.00 ,evap		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 14.46
30	216954200		Controller,compressor ,5 Speed				$ 70.88
32	216954300		Clip,controller				$ 18.90
34	5306594529		Sleeve-compressor				$ 10.34
35	5304460607		Screw,ind Hex Sems ,1/4-28 Unfx ,compressor		Appelez-nous	-
55	297286812		Capacitor-run   (Replaces: 218909911)			Immediately	$ 13.09
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
43B	297315800		Clip,wire				$ 11.25
F1	5300123788		Condenser				$ 706.44
F29	5304507767		Compressor,w/o Electricals   (Replaces: 216966300)				$ 807.12
F36	297234400		Evaporator,tubing Assy				$ 410.47
F5	297171900		Harness-main,w/light				$ 73.71
FNI	297366805		Cord-power   (Replaces: 297169904)				$ 76.31
NI	216502500		Sleeve,suction Line				$ 12.05
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 14.96
NI	241500305		Screw,no.8 ,18x.63   (Replaces: 297174300)				$ 3.37

    View Diagram in Separate Window       Print Part List
