1 - Backsplash Assemblies

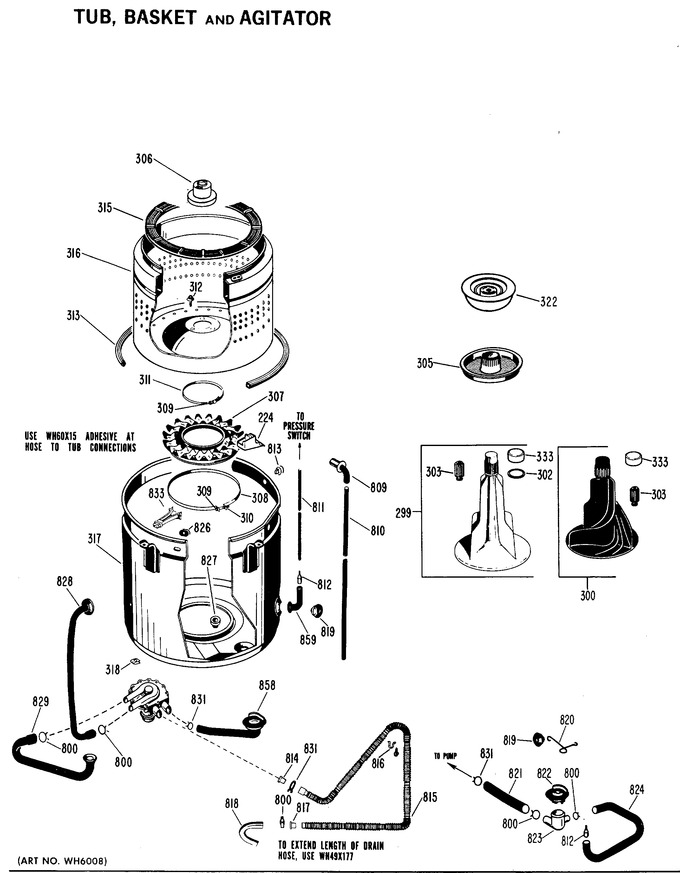

2 - Tub, Basket And Agitator


3 - Cabinet And Suspension Asm.


4 - 1 - Speed


5 - Transmission - Complete Breakdown


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
300	WH43X87		Agitator & Coupling Wh		Appelez-nous	-
303	WH1X1944		Coupling Asm-agitator		Appelez-nous	-
305	WH1X2269		Filter-recirc Wh		Appelez-nous	-
306	WH8X292		Boot-hub		Appelez-nous	-
307	WH8X246		Boot-mech		Appelez-nous	-
308	WH1X1580		Clamp Asm		Appelez-nous	-
309	WH2X935		Screw		Appelez-nous	-
310	WH2X936		Nut		Appelez-nous	-
311	WH1X1292		Clamp Asm				$ 6.25
312	WH2X681		Screw-mach		Appelez-nous	-
313	WG04L01700		Gasket-tub   (Replaces: WH8X305)				$ 15.96
315	WH42X1062		Retainer-clothes				$ 25.01
316	WH45X103		Basket Asm Std Capacity		Appelez-nous	-
317	WH45X69		Tub Asm		Appelez-nous	-
318	WL02X0071		Nut-sheet Metal		Appelez-nous	-
333	WH43X89		Cap-agitator				$ 56.86
800	WH1X2036		Clamp-hose		Appelez-nous	-
800	WH1X203		Clamp-hose M		Appelez-nous	-
809	WH8X253		Nozzle-overflow		Appelez-nous	-
810	WH1X1807		Tube		Appelez-nous	-
811	WH41X12		Hose-switch		Appelez-nous	-
812	WH1X1584		Reducer-hose		Appelez-nous	-
813	WH1X1980		Plug-tub		Appelez-nous	-
814	WH41X158		Adapter-hose		Appelez-nous	-
815	SSD6		Hose-drain   (Replaces: WH41X184)			Immediately	$ 26.16
816	WH16X372		Support-drain Hose		Appelez-nous	-
817	WH41X157		Adapter-hose		Appelez-nous	-
818	WH41X35		Nozzle K		Appelez-nous	-
828	WH41X144		Hose-recirc		Appelez-nous	-
829	WH41X140		Hose-recirc Inlet		Appelez-nous	-
831	WH1X2021		Clamp-hose M		Appelez-nous	-
833	WH41X145		Nozzle-recirc		Appelez-nous	-
858	WH41X91		Hose-drain Inlet		Appelez-nous	-
859	WH41X130		Hose-chamber		Appelez-nous	-
