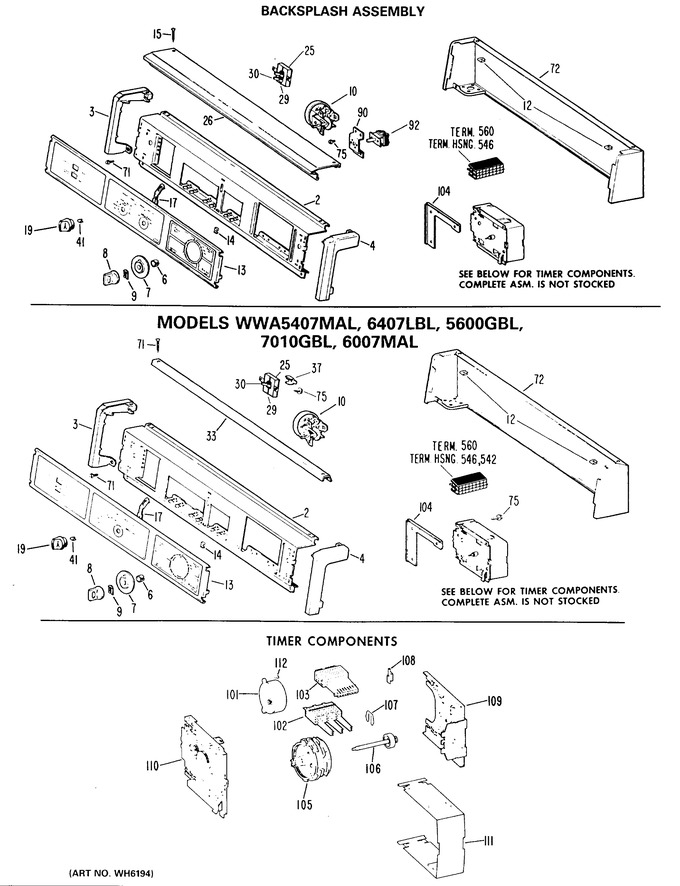

1 - Backsplash Assembly
2 - Tub, Basket & Agitator
3 - Cabinet And Suspension Asm.
4 - Transmission - Complete Breakdown
5 - 2 - Speed
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X771 | Trim End Lh |
|
- | |||||
| 4 | WH42X772 | Trim End Rh |
|
- | |||||
| 6 | WH2X650 | Ring Compression K |
|
- | |||||
| 7 | WH11X91 | Dial Asm |
|
- | |||||
| 8 | WH1X2119 | Knob Asm |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WH12X665 | Switch Asm Pres Togl |
|
- | |||||
| 12 | WB1X358 | Nut Sheet Metal |
|
- | |||||
| 13 | WH42X2102 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Ground |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 25 | WH12X598 | Switch Asm 1 Togl |
|
- | |||||
| 29 | WH1X1394 | Pin |
|
- | |||||
| 30 | WE1X835 | Key Switch |
|
- | |||||
| 33 | WE19X310 | Trim Rear |
|
- | |||||
| 37 | WH16X429 | Bracket Switch |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hx 1/2 S |
|
- | |||||
| 71 | WH2X947 | Scr 8-18 Ab Opr 3/4 S |
|
- | |||||
| 72 | WH46X215 | Backsplash Wrapper Ha |
|
- | |||||
| 72 | WH46X211 | Backsplash Wrapper Wh |
|
- | |||||
| 72 | WH46X212 | Backsplash Wrapper Ad |
|
- | |||||
| 75 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 76 | WZ05X0120 | Scr 8-18 Ab Opr 3/4 S |
|
- | |||||
| 100 | WH12X929 | Timer Asm |
|
- | |||||
| 101 | WH12X644 | Motor Timer |
|
- | |||||
| 103 | WH12X631 | Switch Panel Timer Asm |
|
- | |||||
| 104 | WH16X474 | Bracket Timer Mtg |
|
- | |||||
| 105 | WH11X111 | Cam |
|
- | |||||
| 106 | WH1X2280 | Shaft Timer |
|
- | |||||
| 107 | WH1X2281 | Spring Detent |
|
- | |||||
| 108 | WH1X2282 | Linkage Line Switch |
|
- | |||||
| 109 | WH12X700 | Plate Back |
|
- | |||||
| 110 | WH12X699 | Plate Front |
|
- | |||||
| 111 | WH12X701 | Cover Dust |
|
- | |||||
| 112 | WH2X948 | Scr (timer Asm) |
|
- | |||||
| 179 | WZ04X0288 | Scr 10-16 Bt Hxw 1/2 S |
|
- | |||||
| 402 | WH1X1633 | Pin Stop |
|
- | |||||
| 546 | WH12X604 | Housing Terminal |
|
- | |||||
| 550 | WE2X281 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 560 | WH12X603 | Terminal Special |
|
- | |||||
| 760 | WH5X216 | Gear Crank |
|
- | |||||
| 775 | WZ01X0032 | Scr 5/16-24 Cap Hx1 1/2s |
|
- | |||||
| 32767 | 49-9539 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-2420 | Pm Instruction Instl |
|
- | |||||
| 32767 | 31-2280 | Mini Manual |
|
- |
