SELECT A DIAGRAM

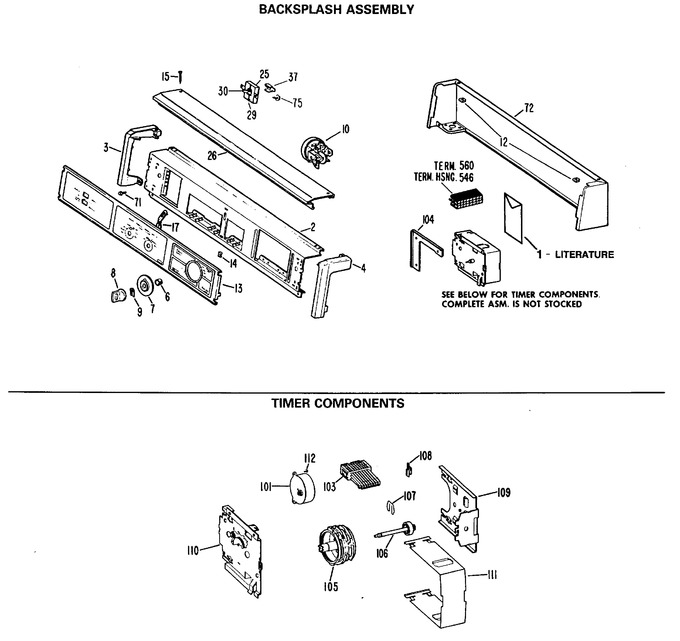

1 - Backsplash Assembly


2 - Cabinet And Suspension Asm.


3 - Transmission-complete Breakdown


4 - Tub, Basket & Agitator


5 - 1-speed


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-9671		Pm Manual Use & Care		Appelez-nous	-
1	31-2112		Pm Instruction Instal		Appelez-nous	-
1	31-2280		Mini Manual		Appelez-nous	-
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X2199		Trim End L.h.		Appelez-nous	-
4	WH42X2200		Trim End R.h.		Appelez-nous	-
6	WH2X650		Ring Comp		Appelez-nous	-
7	WH11X91		Dial Asm		Appelez-nous	-
8	WH1X2119		Control Knob Asm		Appelez-nous	-
9	WG04A00788		Clip Spring   (Replaces: WH1X2117)			Immediately	$ 4.04
10	WH12X874		Switch Asm Pres Togl		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WH42X2175		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
15	WE2X367		Scr 8-18 Ab Opr 3/4 S		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
25	WH12X873		Switch Asm 1 Togl		Appelez-nous	-
26	WH42X2201		Trim Top		Appelez-nous	-
29	WH1X1394		Pin		Appelez-nous	-
37	WH16X429		Bracket Switch		Appelez-nous	-
46	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
70	WH2X937		Screw		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
72	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
72	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
72	WH46X215		Weld Asm-housing Ha		Appelez-nous	-
101	WH12X644		Motor Timer		Appelez-nous	-
103	WH12X631		Switch Panel Timer Asm		Appelez-nous	-
104	WH16X474		Bracket Timer Mtg		Appelez-nous	-
105	WH11X111		Cam		Appelez-nous	-
106	WH1X2280		Shaft Timer		Appelez-nous	-
107	WH1X2281		Spring Detent		Appelez-nous	-
108	WH1X2282		Linkage Line Switch		Appelez-nous	-
109	WH12X700		Plate Back		Appelez-nous	-
110	WH12X699		Plate Front		Appelez-nous	-
111	WH12X701		Cover Dust		Appelez-nous	-
112	WH2X948		Scr (timer Asm)		Appelez-nous	-
180	WR1X1747		Scr 10-12 A Hxw 7/8 S		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
432	WL02X0071		Nut		Appelez-nous	-
546	WH12X870		Housing Terminal Bk		Appelez-nous	-
550	WE2X281		Scr 8-15 Hx 3/8 S		Appelez-nous	-
562	WB17X5054		Terminal		Appelez-nous	-
935	WD1X1434		Terminal Special		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
