View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

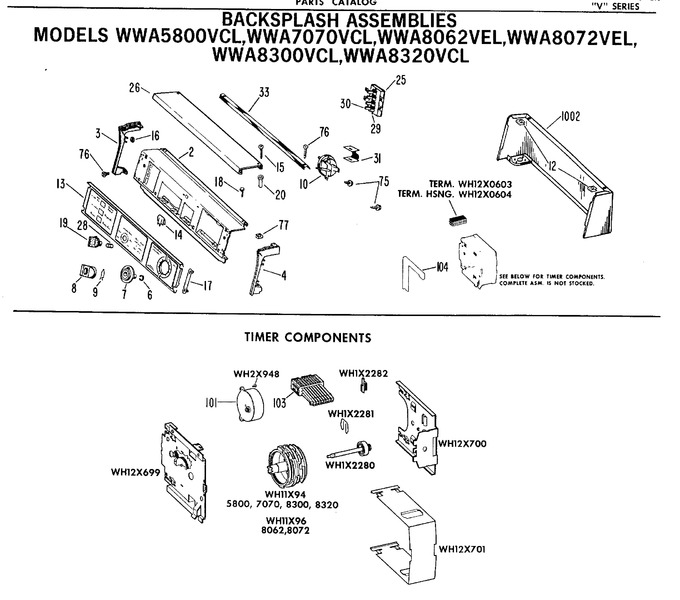

1 - Backsplash Assemblies
2 - Tub, Basket And Agitator
3 - 1-speed
4 - Cabinet And Suspension Asm.
5 - Transmission - Complete Breakdown
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X771 | Trim End Lh |
|
- | |||||
| 4 | WH42X772 | Trim End Rh |
|
- | |||||
| 6 | WH2X650 | Ring Comp |
|
- | |||||
| 7 | WH11X91 | Dial Asm |
|
- | |||||
| 8 | WH1X2119 | Control Knob Asm |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WH12X659 | Switch Asm Pressure |
|
- | |||||
| 13 | WB59X68 | Channel Side |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 19 | WH1X1977 | Knob Switch |
|
- | |||||
| 25 | WH12X597 | Switch Asm 2 Togl |
|
- | |||||
| 28 | WH1X1974 | Clip |
|
- | |||||
| 29 | WH1X1394 | Pin |
|
- | |||||
| 30 | WH1X835 | Key-switch |
|
- | |||||
| 31 | WH16X317 | Shield |
|
- | |||||
| 33 | WE19X310 | Trim Rear |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 76 | WZ05X0120 | Screw |
|
- | |||||
| 101 | WH12X646 | Motor Timer |
|
- | |||||
| 103 | WH12X631 | Switch Panel Timer Asm |
|
- | |||||
| 104 | WH16X433 | Bracket Timer Mounting |
|
- | |||||
| 150 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 179 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 548 | WE17X151 | Terminal |
|
- | |||||
| 550 | WE2X281 | Scr 8-18 Ab Hwx 3/8 S |
|
- | |||||
| 551 | WH12X417 | Housing Terminal |
|
- | |||||
| 554 | WB17X5054 | Terminal |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 560 | WH12X603 | Terminal Special |
|
- | |||||
| 1002 | WH46X211 | Weld Asm-housing Wh |
|
- | |||||
| 1002 | WH46X212 | Weld Asm-housing Ad |
|
- | |||||
| 1002 | WH46X213 | Weld Asm-housing Cf |
|
- | |||||
| 1002 | WH46X214 | Weld Asm-housing Fa |
|
- | |||||
| 1002 | WH46X215 | Weld Asm-housing Ha |
|
- | |||||
| 9999 | 49-9091 | Pm Instal Instr 055 |
|
- | |||||
| 9999 | 49-9377 | Use - Care Book |
|
- | |||||
| 9999 | 49-9371 | Instruction Sheet |
|
- |
