SELECT A DIAGRAM

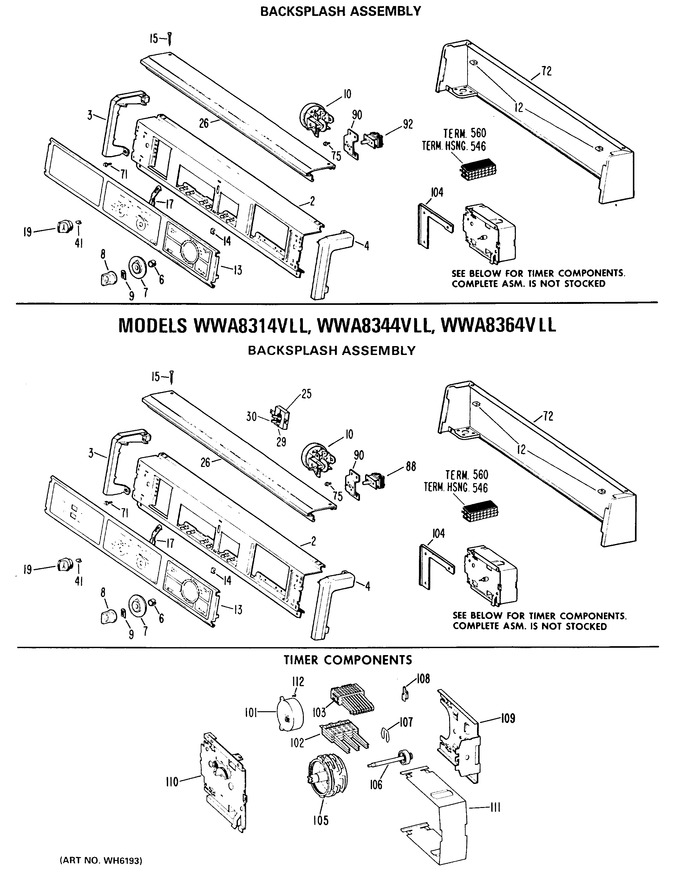

1 - Backsplash Assembly


2 - Backsplash Assembly


3 - Backsplash Assembly


4 - Tub, Basket & Agitator


5 - Cabinet And Suspension Asm.


6 - Transmission - Complete Breakdown


7 - 2-speed


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X771		Trim End Lh		Appelez-nous	-
4	WH42X772		Trim End Rh		Appelez-nous	-
6	WH2X650		Ring Compression K		Appelez-nous	-
7	WH11X91		Dial Asm		Appelez-nous	-
8	WH1X2119		Knob Asm		Appelez-nous	-
9	WG04A00788		Clip Spring   (Replaces: WH1X2117)			Immediately	$ 4.04
10	WH12X833		Switch Asm Press Rotary		Appelez-nous	-
12	WB1X358		Nut Sheet Metal		Appelez-nous	-
13	WH42X2162		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Ground		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
19	WE1X1069		Knob & Clip Asm		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
71	WH2X947		Scr 8-18 Ab Opr 3/4 S		Appelez-nous	-
72	WH46X212		Backsplash Wrapper Ad		Appelez-nous	-
72	WH46X211		Backsplash Wrapper Wh		Appelez-nous	-
72	WH46X215		Backsplash Wrapper Ha		Appelez-nous	-
75	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
90	WH16X434		Bracket Switch		Appelez-nous	-
92	WH12X725		Switch Asm Rotary		Appelez-nous	-
101	WH12X644		Motor Timer		Appelez-nous	-
102	WH12X632		Switch Panel		Appelez-nous	-
103	WH12X631		Switch Panel Timer Asm		Appelez-nous	-
104	WH16X474		Bracket Timer Mtg		Appelez-nous	-
105	WH11X111		Cam		Appelez-nous	-
106	WH1X2280		Shaft Timer		Appelez-nous	-
107	WH1X2281		Spring Detent		Appelez-nous	-
108	WH1X2282		Linkage Line Switch		Appelez-nous	-
109	WH12X700		Plate Back		Appelez-nous	-
110	WH12X699		Plate Front		Appelez-nous	-
111	WH12X701		Cover Dust		Appelez-nous	-
112	WH2X948		Scr (timer Asm)		Appelez-nous	-
546	WH12X604		Housing Terminal		Appelez-nous	-
560	WH12X603		Terminal Special		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
