SELECT A DIAGRAM
1 - Backsplash Assembly

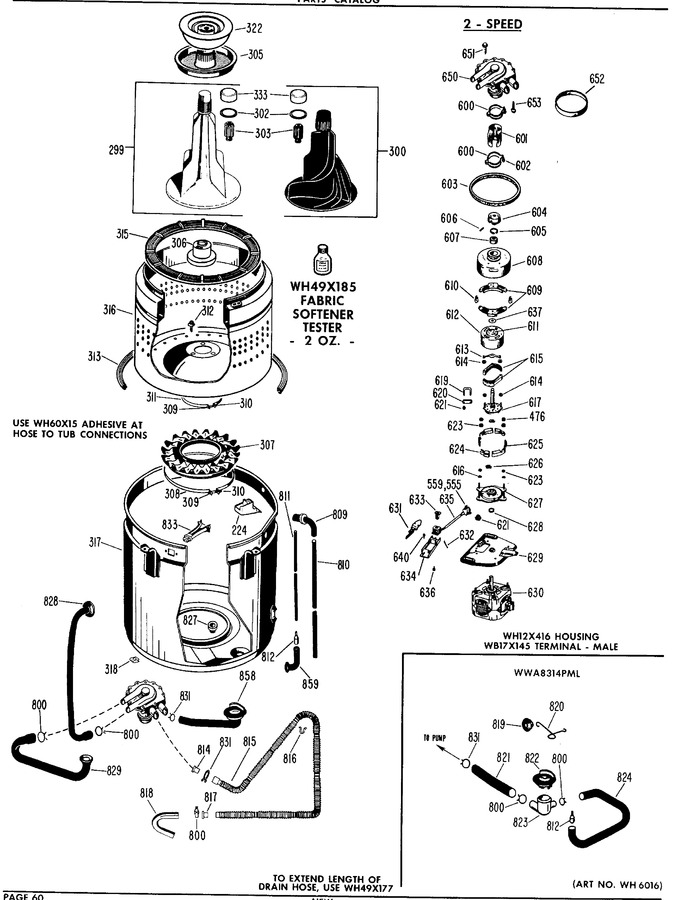

2 - 2-speed
3 - Cabinet And Suspension Asm.
4 - Transmission - Complete Breakdown
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 224 | WH1X2045 | Funnel-tub |
|
- | |||||
| 299 | WH43X88 | Agitator & Coupling Wh |
|
- | |||||
| 302 | WH8X316 | Gasket |
|
- | |||||
| 303 | WH1X1944 | Coupling Asm-agitator |
|
- | |||||
| 305 | WH1X2253 | Filter-recirc Wh |
|
- | |||||
| 306 | WH8X292 | Boot-hub |
|
- | |||||
| 307 | WH8X246 | Boot-mech |
|
- | |||||
| 308 | WH1X1580 | Clamp Asm |
|
- | |||||
| 309 | WH2X935 | Screw |
|
- | |||||
| 310 | WH2X936 | Nut |
|
- | |||||
| 311 | WH1X1292 | Clamp Asm |
|
$ 6.25 | |||||
| 312 | WH2X681 | Screw-mach |
|
- | |||||
| 313 | WG04L01700 | Gasket-tub (Replaces: WH8X305) |
|
$ 15.96 | |||||
| 315 | WH42X1062 | Retainer-clothes |
|
$ 25.01 | |||||
| 316 | WH45X99 | Basket Asm Lg Capacity |
|
- | |||||
| 317 | WH45X84 | Tub Asm |
|
- | |||||
| 318 | WL02X0071 | Nut-sheet Metal |
|
- | |||||
| 322 | WH47X34 | Dispenser & Bag Asm |
|
- | |||||
| 333 | WH4X89 | Cap-agitator |
|
- | |||||
| 476 | WZ13X0031 | Ring-e |
|
- | |||||
| 555 | WB17X5053 | Terminal |
|
- | |||||
| 559 | WH12X538 | Housing-terminal |
|
- | |||||
| 600 | WH1X1621 | Clamp-coupling |
|
- | |||||
| 601 | WH1X1722 | Coupling-flex1ble |
|
- | |||||
| 602 | WH2X941 | Screw-type A |
|
- | |||||
| 603 | WG04F03608 | Belt (Replaces: WH1X2026) |
|
Immediately | $ 44.02 | ||||
| 604 | WH7X45 | Plate-lower Drive |
|
- | |||||
| 605 | WH2X190 | Ring-retaining K |
|
- | |||||
| 606 | WZ11X0050 | Pin-roll |
|
- | |||||
| 607 | WH4X12 | Bearing-ball |
|
- | |||||
| 608 | WH5X175 | Drum Asm-outer |
|
- | |||||
| 609 | WH7X75 | Shoe Asm-slip |
|
- | |||||
| 610 | WH1X1337 | Spring-slip Shoe |
|
- | |||||
| 611 | WH4X91 | Bearing-spacer |
|
- | |||||
| 612 | WH5X207K | Drum-inner Mach (Replaces: WH5X207) |
|
$ 34.88 | |||||
| 613 | WH1X1309 | Spring-clutch Leaf |
|
- | |||||
| 614 | WH2X539 | Washer-flat |
|
- | |||||
| 615 | WH7X64 | Shoe Asm-primary |
|
- | |||||
| 616 | WH2X662 | Washer-bow |
|
- | |||||
| 617 | WH40X150 | Plate Asm-clutch Base |
|
$ 31.05 | |||||
| 619 | WH2X543 | Bolt-u |
|
- | |||||
| 620 | WH1X1169 | Plate-clamp |
|
- | |||||
| 621 | WZ08X0006 | Nut & Washer |
|
- | |||||
| 623 | WH2X580 | Washer-flat |
|
- | |||||
| 624 | WH5X193 | Shoe Asm |
|
- | |||||
| 625 | WH7X71 | Shoe Asm |
|
- | |||||
| 626 | WH1X1258 | Spring-lock-in Shoes |
|
- | |||||
| 627 | WH17X53 | Plate Asm-carrier |
|
- | |||||
| 628 | WZ13X0006 | Ring-retaining |
|
- | |||||
| 629 | WH17X74 | Mount-motor |
|
- | |||||
| 630 | WH20X52 | Motor Asm 1-2 Hp |
|
- | |||||
| 631 | WH1X2055 | Spring & Catch Asm |
|
- | |||||
| 633 | WH12X406 | Shunt & Core Asm |
|
- | |||||
| 634 | WH16X360 | Mount-solenoid |
|
- | |||||
| 635 | WH12X533 | Coil Asm |
|
- | |||||
| 636 | WH2X765 | Screw-mach |
|
- | |||||
| 637 | WH2X634 | Washer-flat |
|
- | |||||
| 640 | WH2X893 | Screw-type B |
|
- | |||||
| 650 | WH23X42 | Pump Asm |
|
$ 138.00 | |||||
| 651 | WH2X888 | Screw-type Bt |
|
- | |||||
| 652 | WH8X286 | Gasket-pump |
|
- | |||||
| 653 | WH2X938 | Screw-type Ab |
|
- | |||||
| 800 | WH1X2036 | Clamp-hose |
|
- | |||||
| 809 | WH8X253 | Nozzle-overflow |
|
- | |||||
| 810 | WH1X1807 | Tube |
|
- | |||||
| 811 | WH41X128 | Hose-switch |
|
- | |||||
| 812 | WH1X1584 | Reducer-hose |
|
- | |||||
| 814 | WH41X158 | Adapter-hose |
|
- | |||||
| 815 | SSD6 | Hose-drain (Replaces: WH41X184) |
|
Immediately | $ 26.16 | ||||
| 816 | WH16X372 | Support-drain Hose |
|
- | |||||
| 817 | WH41X157 | Adapter-hose |
|
- | |||||
| 818 | WH41X35 | Nozzle K |
|
- | |||||
| 819 | WH1X1813 | Plug-tub |
|
- | |||||
| 820 | WH1X1812 | Hanger-chamber Hose |
|
- | |||||
| 821 | WH41X116 | Hose-drain Inlet |
|
- | |||||
| 822 | WH41X118 | Grommet-pump Elbow |
|
- | |||||
| 823 | WH41X139 | Elbow-pump |
|
- | |||||
| 824 | WH41X121 | Hose-chamber |
|
- | |||||
| 827 | WH1X1966 | Coupling-tub Hose |
|
- | |||||
| 828 | WH41X151 | Hose-recirc |
|
- | |||||
| 829 | WH41X140 | Hose-recirc Inlet |
|
- | |||||
| 831 | WH1X2021 | Clamp-hose M |
|
- | |||||
| 833 | WH41X143 | Nozzle-recirc |
|
- |
