Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WE19X719 Escutcheon Asm Appelez-nous -
3 WE19X793 Trim End Lh Appelez-nous -
4 WE19X792 Trim End Rh Appelez-nous -
6 WH2X650 Ring Compression K Appelez-nous -
7 WH11X91 Dial Asm Appelez-nous -
8 WH1X2119 Knob Asm Appelez-nous -
9 WG04A00788 Clip Spring   (Replaces: WH1X2117) In-Stock Immediately $ 4.04

10 WH12X721 Switch Asm Press Rotary Appelez-nous -
12 WB1X358 Nut Sheet Metal Appelez-nous -
13 WH42X2060 Switch Trim Asm Appelez-nous -
14 WE1X762 Clip Ground Appelez-nous -
15 WZ04X0319 Scr 8-18 Ba Opr 1 7/16 S Appelez-nous -
17 WH1X2008 Clip Trim Appelez-nous -
19 WE1X979 Knob And Clip Asm Appelez-nous -
24 WZ02X0510 Scr 8-32 M Hx 3/16 S Appelez-nous -
26 WH42X2033 Trim Asm Top Appelez-nous -
35 WH12X732 Switch Asm 2 Button Appelez-nous -
36 WE1X981 Button Switch Appelez-nous -
41 WE1X980 Clip Knob Appelez-nous -
43 WH16X343 Plate Switch Appelez-nous -
72 WH46X212 Backsplash Wrapper Ad Appelez-nous -
72 WH46X215 Backsplash Wrapper Ha Appelez-nous -
72 WH46X211 Backsplash Wrapper Wh Appelez-nous -
75 WG04A00781 Scr 10-15 A Hxw 3/8 S   (Replaces: WH2X930) In-Stock Immediately $ 3.97

90 WH16X434 Bracket Switch Appelez-nous -
91 WH12X724 Switch Asm Rotary Appelez-nous -
101 WH12X633 Motor Timer Appelez-nous -
103 WH12X631 Switch Panel Timer Asm Appelez-nous -
104 WH16X433 Bracket Timer Mounting Appelez-nous -
105 WH11X112 Cam Appelez-nous -
106 WH1X2280 Shaft Timer Appelez-nous -
107 WH1X2281 Spring Detent Appelez-nous -
108 WH1X2282 Linkage Line Switch Appelez-nous -
109 WH12X700 Plate Back Appelez-nous -
110 WH12X699 Plate Front Appelez-nous -
111 WH12X701 Cover Dust Appelez-nous -
112 WH2X948 Scr (timer Asm) Appelez-nous -
32767 WH46X214 Backsplash Wrapper Fa Appelez-nous -
32767 WH46X213 Backsplash Wrapper Cf Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

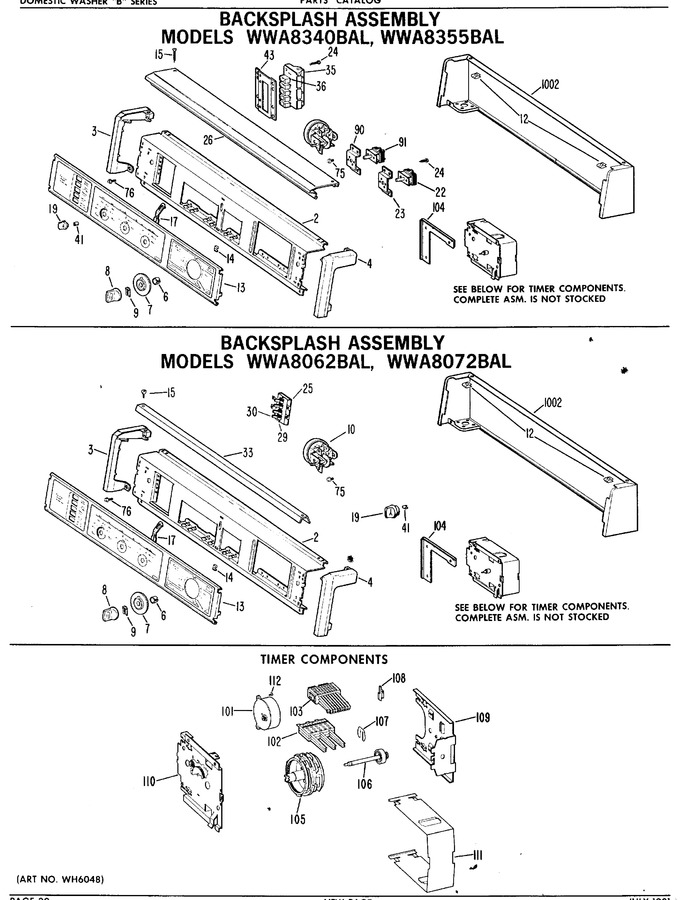

Diagram for WWA8340BAL
