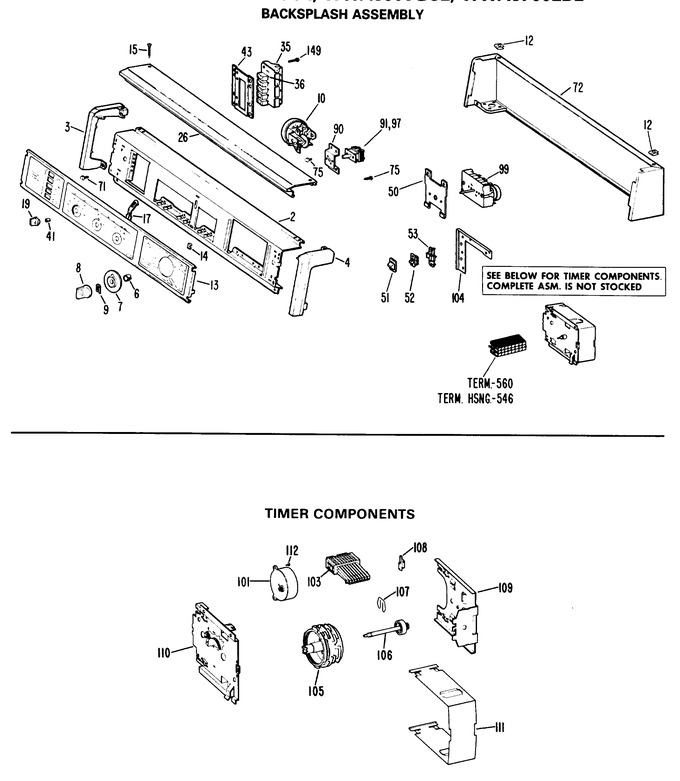

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WE19X793 | Trim End Lh |
|
- | |||||
| 4 | WE19X792 | Trim End Rh |
|
- | |||||
| 6 | WH2X650 | Ring Compression K |
|
- | |||||
| 7 | WH11X91 | Dial Asm |
|
- | |||||
| 8 | WH1X2119 | Knob Asm |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WH12X721 | Switch Water Level Var/m |
|
- | |||||
| 12 | WB1X358 | Nut Sheet Metal |
|
- | |||||
| 13 | WH42X2100 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Ground |
|
- | |||||
| 15 | WZ04X0319 | Scr 8-18 Ba Opr 1 7/16 S |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 19 | WE1X1069 | Knob & Clip Asm |
|
- | |||||
| 26 | WH42X2131 | Trim Asm Top |
|
- | |||||
| 35 | WH12X720 | Switch Asm 3 Button |
|
- | |||||
| 36 | WE1X981 | Button Switch |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 43 | WH16X343 | Plate Switch |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hx 1/2 S |
|
- | |||||
| 50 | WH16X471 | Bracket Timer |
|
- | |||||
| 71 | WH2X947 | Scr 8-18 Ab Opr 3/4 S |
|
- | |||||
| 72 | WH46X215 | Backsplash Wrapper Ha |
|
- | |||||
| 72 | WH46X211 | Backsplash Wrapper Wh |
|
- | |||||
| 72 | WH46X212 | Backsplash Wrapper Ad |
|
- | |||||
| 75 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 90 | WH16X434 | Bracket Switch |
|
- | |||||
| 91 | WH12X724 | Switch Asm Rotary |
|
- | |||||
| 99 | WH12X836 | Timer Asm |
|
- | |||||
| 100 | WH12X932 | Timer Asm |
|
- | |||||
| 101 | WH12X633 | Motor Timer |
|
- | |||||
| 103 | WH12X631 | Switch Panel Timer Asm |
|
- | |||||
| 104 | WH16X474 | Bracket Timer Mtg |
|
- | |||||
| 105 | WH11X113 | Cam |
|
- | |||||
| 106 | WH1X2280 | Shaft Timer |
|
- | |||||
| 107 | WH1X2281 | Spring Detent |
|
- | |||||
| 108 | WH1X2282 | Linkage Line Switch |
|
- | |||||
| 109 | WH12X700 | Plate Back |
|
- | |||||
| 110 | WH12X699 | Plate Front |
|
- | |||||
| 111 | WH12X701 | Cover Dust |
|
- | |||||
| 112 | WH2X948 | Scr (timer Asm) |
|
- | |||||
| 149 | WZ04X0280 | Scr 8-18 B Hxw 3/4 S |
|
- | |||||
| 150 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 179 | WZ04X0288 | Scr 10-16 Bt Hxw 1/2 S |
|
- | |||||
| 224 | WH1X2045 | Funnel Tub |
|
- | |||||
| 414 | WH2X715 | Scr 12-14 B Hx 3/4 S |
|
- | |||||
| 415 | WZ04X0345 | Scr 8-32 Hx 3/8 S |
|
- | |||||
| 546 | WH12X604 | Housing Terminal |
|
- | |||||
| 550 | WE2X281 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 554 | WB17X5054 | Terminal |
|
- | |||||
| 560 | WH12X603 | Terminal |
|
- | |||||
| 758 | WH8X367 | Gasket Gear Case Cover |
|
- | |||||
| 32767 | 31-2392 | Mini Manual |
|
- | |||||
| 32767 | 49-9575 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-2420 | Pm Instruction Instl |
|
- |
