1 - Component Group
2 - Cabinet And Suspension Asm.

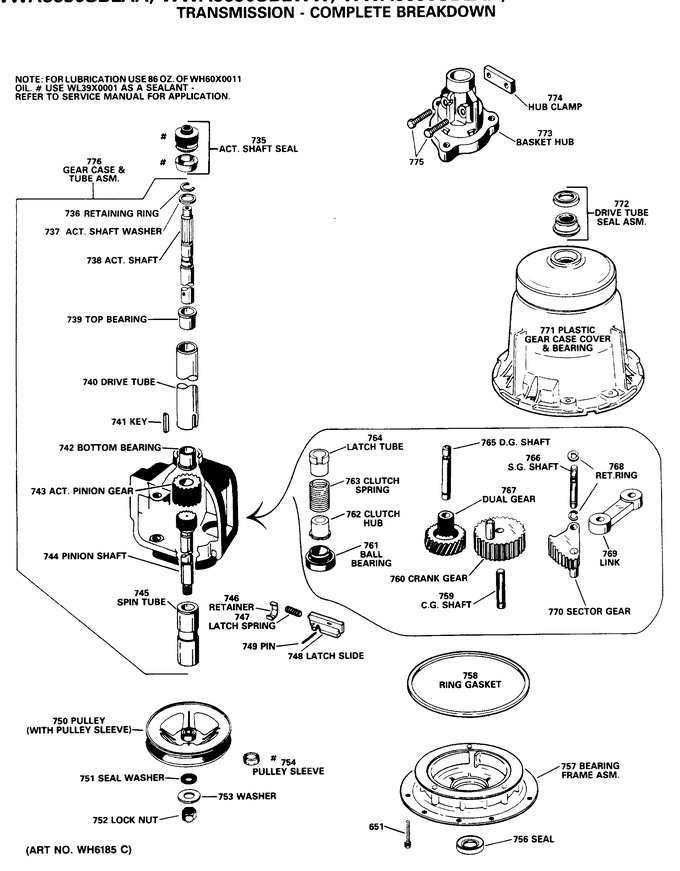

3 - Transmission - Complete Breakdown
4 - Tub, Basket & Agitator
5 - 2 - Speed
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 651 | WH2X888 | Scr 1/4-14 Bt Hxw 1 S |
|
- | |||||
| 735 | WH8X291K | Seal Asm Agitator Shaft (Replaces: WH8X291) |
|
$ 8.85 | |||||
| 736 | WP9703438 | Ring Retaining (Replaces: WH2X786) |
|
Immediately | $ 4.23 | ||||
| 737 | WH2X207 | Washer Flat |
|
- | |||||
| 738 | WH40X178 | Shaft Agitator |
|
- | |||||
| 739 | WH4X85 | Bearing Asm Agit Shaft K |
|
- | |||||
| 740 | WH40X153 | Tube Drive 14# |
|
- | |||||
| 741 | WH1X1834 | Key |
|
- | |||||
| 742 | WH4X93 | Bearing Asm Agit Shaft |
|
- | |||||
| 743 | WH5X227 | Pinion Agit Shaft |
|
- | |||||
| 744 | WH40X159 | Shaft-pinion Mach |
|
- | |||||
| 745 | WH40X157 | Tube Spin |
|
- | |||||
| 746 | WH1X2335 | Retainer Spring |
|
- | |||||
| 747 | WH1X1842 | Spring Latch |
|
- | |||||
| 749 | WZ11X0055 | Pin Roll |
|
- | |||||
| 750 | WH7X46 | Pulley & Sleeve Asm |
|
- | |||||
| 751 | WH2X671 | Washer Flat Seal |
|
$ 2.08 | |||||
| 752 | WH2X659 | Nut Lock |
|
- | |||||
| 753 | WH2X201 | Washer Flat |
|
- | |||||
| 754 | WH1X2042 | Sleeve Pulley |
|
- | |||||
| 756 | WH8X281 | Seal |
|
- | |||||
| 757 | WH17X68 | Frame Asm Bearing |
|
- | |||||
| 758 | WH8X367 | Gasket Gear Case Cover |
|
- | |||||
| 759 | WH40X149 | Shaft Crank Gear |
|
- | |||||
| 760 | WH5X216 | Gear Crank |
|
- | |||||
| 761 | WH4X81 | Bearing |
|
- | |||||
| 762 | WH7X57 | Hub Clutch |
|
- | |||||
| 763 | WH7X58 | Spring Clutch |
|
- | |||||
| 764 | WH1X2147 | Tube Latch |
|
- | |||||
| 765 | WH40X145 | Shaft Dual Gear |
|
- | |||||
| 766 | WH40X146 | Shaft Sector Gear |
|
- | |||||
| 767 | WH5X209 | Gear Dual Mach |
|
- | |||||
| 768 | WZ13X0032 | Ring Retaining |
|
- | |||||
| 769 | WH5X188 | Link |
|
- | |||||
| 770 | WH5X187 | Gear Sector |
|
- | |||||
| 771 | WH39X46 | Cover Asm Gear Case |
|
- | |||||
| 772 | WH8X347 | Drive Tube Seal Asm |
|
- | |||||
| 774 | WH1X2083 | Clamp-hub Mach |
|
- | |||||
| 775 | WZ01X0032 | Scr 5/16-24 Cap Hx1 1/2s |
|
- | |||||
| 776 | WH37X45 | Gear Case & Tube Asm |
|
- |
