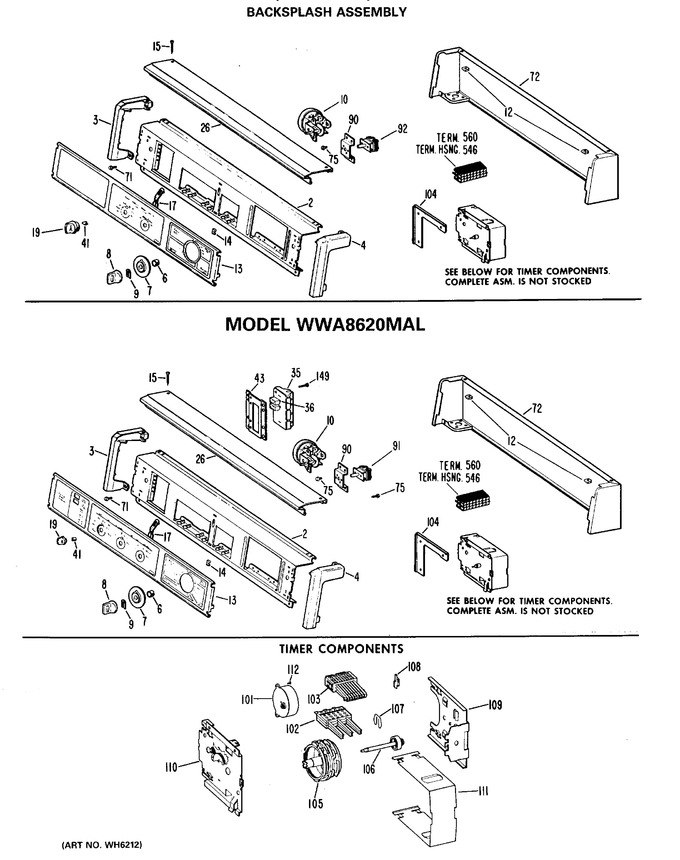

1 - Backsplash Assembly
2 - Tub, Basket & Agitator
3 - Cabinet And Suspension Asm.
4 - Transmission - Complete Breakdown
5 - 2 - Speed
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X2199 | Trim End L.h. |
|
- | |||||
| 4 | WH42X2200 | Trim End R.h. |
|
- | |||||
| 6 | WH2X650 | Ring Compression K |
|
- | |||||
| 7 | WH11X91 | Dial Asm |
|
- | |||||
| 8 | WH1X2119 | Knob Asm |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WH12X833 | Switch Asm Press Rotary |
|
- | |||||
| 12 | WB1X358 | Nut Sheet Metal |
|
- | |||||
| 13 | WH42X2182 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Ground |
|
- | |||||
| 15 | WE2X367 | Scr 8-18 Ab Opr 3/4 S |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 19 | WE1X1069 | Knob & Clip Asm |
|
- | |||||
| 26 | WH42X2201 | Trim Top |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hx 1/2 S |
|
- | |||||
| 71 | WH2X947 | Scr 8-18 Ab Opr 3/4 S |
|
- | |||||
| 72 | WH46X212 | Backsplash Wrapper Ad |
|
- | |||||
| 72 | WH46X211 | Backsplash Wrapper Wh |
|
- | |||||
| 72 | WH46X215 | Backsplash Wrapper Ha |
|
- | |||||
| 75 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 90 | WH16X434 | Bracket Switch |
|
- | |||||
| 92 | WH12X725 | Switch Asm Rotary |
|
- | |||||
| 100 | WH12X989 | Timer Asm |
|
- | |||||
| 101 | WH12X633 | Motor Timer |
|
- | |||||
| 102 | WH12X632 | Switch Panel |
|
- | |||||
| 103 | WH12X631 | Switch Panel Timer Asm |
|
- | |||||
| 104 | WH16X474 | Bracket Timer Mtg |
|
- | |||||
| 106 | WH1X2280 | Shaft Timer |
|
- | |||||
| 107 | WH1X2281 | Spring Detent |
|
- | |||||
| 108 | WH1X2282 | Linkage Line Switch |
|
- | |||||
| 109 | WH12X700 | Plate Back |
|
- | |||||
| 110 | WH12X699 | Plate Front |
|
- | |||||
| 111 | WH12X701 | Cover Dust |
|
- | |||||
| 112 | WH2X948 | Scr (timer Asm) |
|
- | |||||
| 150 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 223 | WH1X2054 | Spout Bleach Wh |
|
- | |||||
| 312 | WH2X681 | Scr 5/16-18 Hx 7/8 S |
|
- | |||||
| 394 | WH44X979 | Lid Ha |
|
- | |||||
| 415 | WZ04X0345 | Scr 8-32 Hx 3/8 S |
|
- | |||||
| 430 | WG04A01266 | Scr Leveling (Replaces: WH2X1137) |
|
$ 4.04 | |||||
| 463 | WH1X2628 | Cap Leveling Screw |
|
- | |||||
| 546 | WH12X871 | Housing Terminal Wh |
|
- | |||||
| 546 | WH12X870 | Housing Terminal Bk |
|
- | |||||
| 550 | WE2X281 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 560 | WD1X1434 | Terminal Special |
|
- | |||||
| 640 | WH12X851 | Catch Asm Clutch |
|
- | |||||
| 32767 | 31-2112 | Pm Instruction Instal |
|
- | |||||
| 32767 | 49-9673 | Pm Manual Use & Care |
|
- |
