SELECT A DIAGRAM

1 - Component Group


2 - Cabinet And Suspension Asm


3 - Transmission - Complete Breakdown


4 - Tub, Basket & Agitator


5 - Component Group

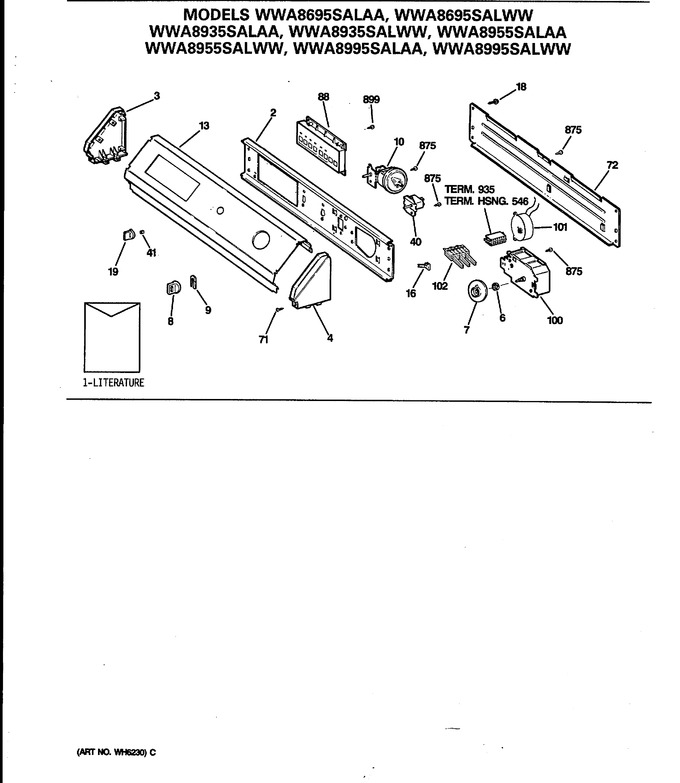

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-2688-26		Pm Sheet Mini Manual		Appelez-nous	-
1	49-9785		Pm Manual Use & Care		Appelez-nous	-
1	31-2112		Pm Instruction Instal		Appelez-nous	-
2	WH46X331		Plate, Mounting		Appelez-nous	-
3	WH42X2227		End Cap L.h. Wh		Appelez-nous	-
4	WH42X2228		End Cap R.h. Wh		Appelez-nous	-
6	WH2X650		Ring Comp		Appelez-nous	-
7	WH1X2711		Dial Asm		Appelez-nous	-
8	WH1X2710		Knob Asm		Appelez-nous	-
9	WG04A00788		Clip Spring   (Replaces: WH1X2117)			Immediately	$ 4.04
10	WH12X967		Switch Pressure		Appelez-nous	-
13	WH42X2357		Switch Trim Asm		Appelez-nous	-
16	WH2X1151		Clip Ground		Appelez-nous	-
18	WE2X395		Scr 8-10 Plascrew Ihw5/8		Appelez-nous	-
19	WE1X1207		Knob & Clip Asm Wh		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
46	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
70	WH2X937		Screw 10-15x7/16 Hxw		Appelez-nous	-
71	WH2X1155		Screw 8-18 B 0vt Is Wh		Appelez-nous	-
72	WH46X311		Panel Access		Appelez-nous	-
88	WH12X980		Low Trvl Switch Wh		Appelez-nous	-
100	WH12X977		Timer Asm Washer		Appelez-nous	-
101	WH12X976		Motor Timer		Appelez-nous	-
102	WH12X918		Switch Panel		Appelez-nous	-
150	WZ20X0007		Hanger Cable		Appelez-nous	-
180	WR1X1747		Scr 10-12 A Hxw 7/8 S		Appelez-nous	-
300	WH43X126		Agitator Asm		Appelez-nous	-
322	WH47X43		Dispenser Rinse Agent		Appelez-nous	-
436	WH2X739		Clip Nut		Appelez-nous	-
546	WH12X870		Housing Terminal Bk		Appelez-nous	-
550	WE2X281		Scr 8-15 Hx 3/8 S		Appelez-nous	-
562	WB17X5054		Terminal		Appelez-nous	-
614	WH2X539		Washer Flat		Appelez-nous	-
616	WH2X662		Washer Bow		Appelez-nous	-
623	WH2X580		Washer Flat		Appelez-nous	-
875	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
899	WE1X1233		Scr 8-18 X 3/4 Ab Hw		Appelez-nous	-
935	WD1X1434		Terminal Special		Appelez-nous	-
942	WD1X1395		Terminal Pin & Socket		Appelez-nous	-
2240	WH60X15		Adhesive			Immediately	$ 47.25

    View Diagram in Separate Window       Print Part List
