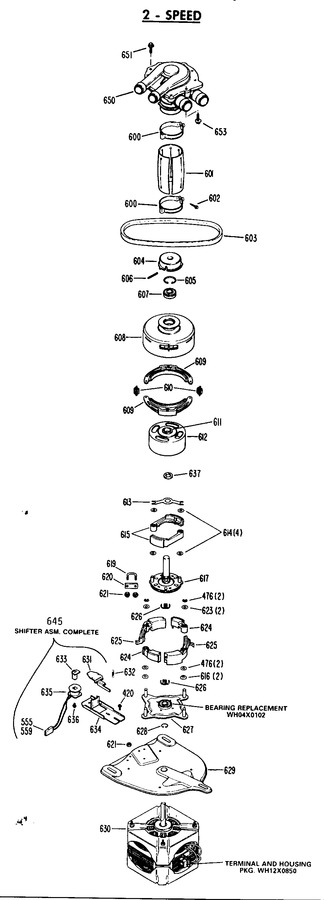

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
420	WH2X893		Scr 10-16 Hx 3/8 S		Appelez-nous	-
476	WZ13X0031		E Ring		Appelez-nous	-
555	WB17X5053		Terminal		Appelez-nous	-
559	WH12X538		Housing Terminal		Appelez-nous	-
600	WH1X1621		Clamp Coupling		Appelez-nous	-
601	WH1X1722		Coupling Flexible		Appelez-nous	-
602	WH2X941		Screw Couple Clamp		Appelez-nous	-
603	WG04F03608		Belt   (Replaces: WH1X2026)			Immediately	$ 44.02
604	WH7X45		Plate Lower Drive		Appelez-nous	-
605	WH2X190		Ring Retaining		Appelez-nous	-
606	WZ11X0050		Roll Pin		Appelez-nous	-
607	WH4X12		Bearing Ball		Appelez-nous	-
608	WH5X175		Clutch Outer Asm		Appelez-nous	-
609	WH7X103		Shoe Asm Slip		Appelez-nous	-
610	WH1X1337		Spring Slip Shoe		Appelez-nous	-
611	WH4X91		Bearing Kit		Appelez-nous	-
612	WH5X207K		Drum Inner   (Replaces: WH5X207)				$ 34.88
613	WH1X1309		Spring Clutch Leaf		Appelez-nous	-
614	WH2X539		Washer Flat		Appelez-nous	-
615	WH7X110		Shoe Clutch Primary (2)		Appelez-nous	-
616	WH2X662		Washer Bow		Appelez-nous	-
617	WH40X150		Plate Asm Clutch Base				$ 31.05
619	WH2X543		Bolt U		Appelez-nous	-
620	WH1X1169		Plate Clamp		Appelez-nous	-
621	WZ08X0006		Nut & Washer		Appelez-nous	-
624	WH5X193		Shoe Asm		Appelez-nous	-
625	WH7X76		Shoe Asm		Appelez-nous	-
626	WH1X1258		Spring Lock In Shoes		Appelez-nous	-
627	WH17X53		Plate Asm Carrier		Appelez-nous	-
628	WZ13X0006		Ring Retaining		Appelez-nous	-
629	WH17X86		Mount Motor		Appelez-nous	-
630	WH20X64		Motor Asm.		Appelez-nous	-
631	WH1X2055		Spring & Catch Asm		Appelez-nous	-
632	WH1X1797		Spring		Appelez-nous	-
633	WH12X406		Shunt & Core Asm		Appelez-nous	-
634	WH16X478		Mount Solenoid		Appelez-nous	-
635	WH12X533		Coil Asm		Appelez-nous	-
636	WH2X765		Scr 8-32 M Hx 3/8 S		Appelez-nous	-
637	WH2X634		Washer Flat		Appelez-nous	-
645	WH12X851		Catch Asm Clutch		Appelez-nous	-
650	WH23X42		Pump Asm				$ 138.00
651	WH2X888		Scr 1/4-14 Bt Hxw 1 S		Appelez-nous	-
653	WH2X938		Scr 10-16 Ab Hxw 1 3/8 S		Appelez-nous	-
