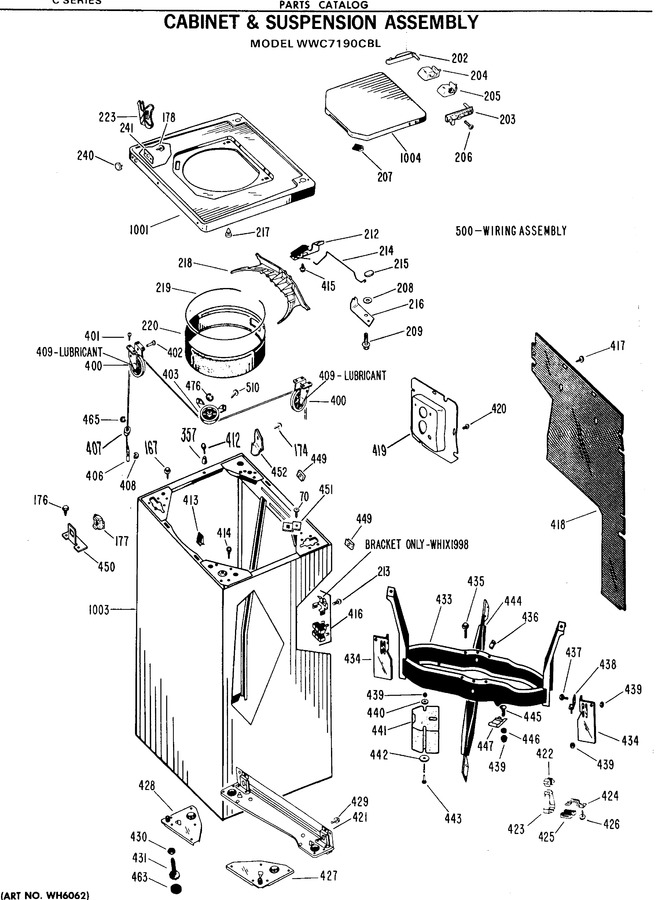

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 70 | WH2X937 | Scr 10-15 A Hxw 7/16 S |
|
- | |||||
| 167 | WE2X186 | Scr 1/4-14 Ab Hxw 9/16 S |
|
- | |||||
| 174 | WH2X934 | Scr 12-14 Ab Sh 1/2 S |
|
- | |||||
| 176 | WH2X931 | Scr 8-32 B Hxw 1/2 S |
|
- | |||||
| 177 | WH2X923 | Nut Clip |
|
- | |||||
| 178 | WH2X939 | Scr 6-19 Pt Hx 1/4 S |
|
- | |||||
| 202 | WH1X2085 | Hinge Pivot L.h. |
|
- | |||||
| 203 | WH1X2222 | Hinge-pivot R.h. |
|
- | |||||
| 204 | WH1X2087 | Pad-hinge L.h. |
|
- | |||||
| 205 | WH1X2086 | Pad-hinge R.h. |
|
- | |||||
| 206 | WH2X819 | Scr 8-18 B Rt 1/2 Ss |
|
- | |||||
| 207 | WH1X1654 | Bumper Lid |
|
- | |||||
| 208 | WH1X2088 | Gasket |
|
- | |||||
| 209 | WH2X820 | Scr 1/4-14 Bt Hxw 3/4 Ss |
|
- | |||||
| 212 | WH12X494 | Switch & Bracket Asm |
|
$ 18.02 | |||||
| 213 | WZ04X0345 | Scr 8-18 Ab Hx 3/8 S |
|
- | |||||
| 214 | WH1X2090 | Actuator Switch |
|
- | |||||
| 215 | WG04L01749 | Knob Actuator (Replaces: WH1X2089) |
|
$ 68.15 | |||||
| 216 | WH16X376 | Bracket Actuator |
|
- | |||||
| 217 | WH1X1480 | Bumper Lid |
|
- | |||||
| 218 | WH16X413 | Retainer Cover Shield |
|
- | |||||
| 219 | WH16X370 | Wire |
|
- | |||||
| 220 | WH8X295 | Shield Cover |
|
- | |||||
| 223 | WH1X2054 | Spout Bleach Wh |
|
- | |||||
| 223 | WH1X2234 | Spout Bleach Ha |
|
- | |||||
| 223 | WH1X2232 | Spout Bleach Ad |
|
- | |||||
| 240 | WH1X2266 | Button Plug |
|
- | |||||
| 241 | WH1X2268 | Retainer Button |
|
- | |||||
| 357 | WH1X2187 | Stop Cover |
|
- | |||||
| 393 | WH46X195 | Apron & Brace Asm Ad |
|
- | |||||
| 393 | WH46X198 | Apron & Brace Asm Ha |
|
- | |||||
| 393 | WH46X172 | Apron & Brace Asm Wh |
|
- | |||||
| 400 | WH7X40 | Pulley & Bracket Asm |
|
- | |||||
| 401 | WH2X940 | Scr 8-32 Tt Fl 1/2 S |
|
- | |||||
| 402 | WH1X1633 | Pin Stop |
|
- | |||||
| 403 | WH7X41 | Pulley And Brkt Asm |
|
- | |||||
| 406 | WH16X374 | Cable Std Capacity |
|
- | |||||
| 407 | WH1X2082 | Cup Washer White |
|
- | |||||
| 407 | WH1X2081 | Cup Washer Black |
|
- | |||||
| 408 | WH1X2060 | Retainer-seat |
|
- | |||||
| 409 | WL39X0003 | Lubricant |
|
- | |||||
| 412 | BUY LOCAL | Scr 10-12 A Rd 1 1/8 S |
|
- | |||||
| 413 | WH1X1923 | Clip Cover |
|
- | |||||
| 414 | WH2X715 | Scr 12-14 B Hx 3/4 S |
|
- | |||||
| 415 | WZ04X0345 | Scr 8-32 Hx 3/8 S |
|
- | |||||
| 416 | WH12X629 | Relay Asm |
|
- | |||||
| 417 | WH2X694 | Scr 10-12 A Hx 1/2 S |
|
- | |||||
| 418 | WH44X925 | Back-apron |
|
- | |||||
| 419 | WH16X373 | Bracket Valve |
|
- | |||||
| 420 | WH2X893 | Scr 10-16 B Hxw 3/8 S |
|
- | |||||
| 421 | WH46X188 | Weld Asm Rear Base |
|
- | |||||
| 422 | WH1X2296 | Pad Friction |
|
- | |||||
| 423 | WH1X1951 | Yoke |
|
- | |||||
| 424 | WH1X1862 | Clamp Yoke |
|
- | |||||
| 425 | WH1X1953 | Cushion Yoke |
|
- | |||||
| 426 | WH2X882D | Scr 14-10 A Hx 3/4 S (Replaces: WH2X882) |
|
- | |||||
| 427 | WH46X181 | Bracket Base Rh |
|
- | |||||
| 428 | WH46X182 | Bracket Base Lh |
|
- | |||||
| 429 | WH2X795 | Scr 1/4-14 B Hx 3/8 S |
|
- | |||||
| 430 | WZ07X0040 | Nut |
|
- | |||||
| 431 | WH1X209 | Scr 3/8-24 Lvl 2 S |
|
- | |||||
| 433 | WH17X67 | Suspension Asm |
|
- | |||||
| 434 | WH16X364 | Damping Fin Std. Cap. |
|
- | |||||
| 435 | WH2X1056 | Scr 1/4-20 Ca Hx 1 7/16s |
|
- | |||||
| 436 | WH2X739 | Nut Sheet Metal |
|
- | |||||
| 437 | WZ02X0514 | Scr 1/4-20 M Hx 13/16 S |
|
- | |||||
| 438 | WH16X405 | Hanger Asm Motor |
|
- | |||||
| 439 | WH2X707 | Nut |
|
- | |||||
| 440 | WH2X810 | Spacer |
|
- | |||||
| 441 | WH1X2056 | Counterweight |
|
- | |||||
| 442 | WH2X811 | Washer Flat |
|
- | |||||
| 443 | WH2X812 | Scr 1/4-20 Hx 5 S |
|
- | |||||
| 444 | WH16X361 | Damping Fin & Supt-14# |
|
- | |||||
| 445 | WH2X798 | Scr 1/4-20 M Rd 11/16 S |
|
- | |||||
| 446 | WE2X279 | Washer Flat |
|
- | |||||
| 447 | WH2X801 | Retainer Bolt |
|
- | |||||
| 449 | WH2X896 | Clip |
|
- | |||||
| 450 | WH16X430 | Bracket Lf Hold Down |
|
- | |||||
| 451 | WH16X410 | Nut & Bracket Asm |
|
- | |||||
| 452 | WH16X431 | Bracket Hinge |
|
- | |||||
| 463 | 34318 | Cap Leveling Screw K (Replaces: WH1X484) |
|
Immediately | $ 5.27 | ||||
| 465 | WZ13X0024 | Ring E |
|
- | |||||
| 476 | WZ13X0031 | Ring E |
|
- | |||||
| 510 | WE2X263 | Scr 10-16 Ab Hxw 1/2 S |
|
- | |||||
| 1001 | WH44X1026 | Cover Asm Wh |
|
- | |||||
| 1001 | WH44X1028 | Cover Asm Ad |
|
- | |||||
| 1001 | WH44X1021 | Cover Asm Ha |
|
- | |||||
| 1004 | WH44X1044 | Lid Wh |
|
- | |||||
| 1004 | WH44X1047 | Lid Ha |
|
- | |||||
| 1004 | WH44X1045 | Lid Ad |
|
- | |||||
| 32767 | WH46X197 | Apron & Brace Asm Fa |
|
- | |||||
| 32767 | WH44X1025 | Cover Asm Fa |
|
- | |||||
| 32767 | WH44X1046 | Lid Fa |
|
- | |||||
| 32767 | WH1X2233 | Spout Bleach Fa |
|
- |
