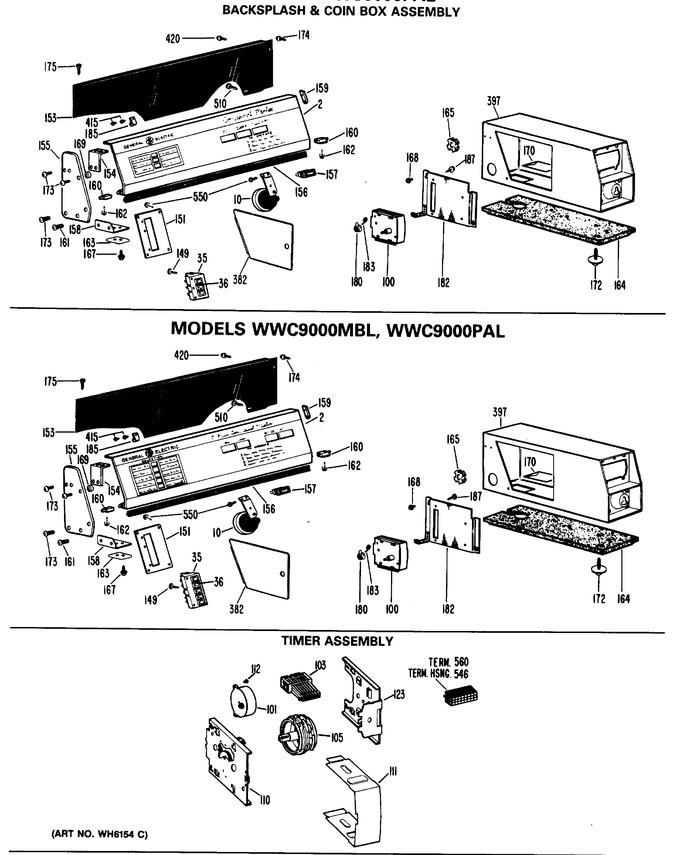

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WH42X2214 | Housing Asm Control |
|
- | |||||
| 35 | WH12X848 | Switch & Button Asm 3 |
|
- | |||||
| 36 | WH1X2562 | Button Switch |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 70 | WH2X937 | Screw |
|
- | |||||
| 75 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 100 | WH12X888 | Timer Asm |
|
$ 221.64 | |||||
| 101 | WH12X673 | Motor Timer |
|
- | |||||
| 103 | WH12X827 | Switch Panel |
|
- | |||||
| 110 | WH12X707 | Plate Front |
|
- | |||||
| 111 | WH12X705 | Cover Dust |
|
- | |||||
| 112 | WZ05X0248 | Scr |
|
- | |||||
| 123 | WH12X706 | Plate Back |
|
- | |||||
| 150 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 151 | WE13X133 | Bracket Switch |
|
- | |||||
| 153 | WH46X263 | Panel Rear |
|
- | |||||
| 154 | WE1X913 | Bracket Mounting |
|
- | |||||
| 155 | WE1X948 | Trim End |
|
- | |||||
| 156 | WE1X949 | Gasket Control Hsg |
|
- | |||||
| 157 | WH12X624 | Lamp Asm-red |
|
- | |||||
| 157 | WG04F07410 | Lamp Asm-amber (Replaces: WE1X950) |
|
$ 10.81 | |||||
| 158 | WE1X951 | Gusset |
|
- | |||||
| 159 | WE1X952 | Support Housing |
|
- | |||||
| 160 | WE1X953 | Block Pivot |
|
- | |||||
| 161 | WE2X273 | Scr 10-14 Pt Sh 7/16 S |
|
- | |||||
| 162 | WE2X274 | Scr 8-16 Pt Hxw 3/8 S |
|
- | |||||
| 163 | WE9X48 | Gasket |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 168 | WZ02X0468 | Scr 10-32 M Hs 1/8 S |
|
- | |||||
| 169 | WH1X2194 | Tube Plug |
|
- | |||||
| 170 | WH49X264 | Pm Envelope Asm Lockdown |
|
- | |||||
| 172 | WH2X735 | Scr 1/4-20 M Sh .900 Cs |
|
- | |||||
| 173 | WH2X932 | Scr 8-32 Tt Sh 1/2 S |
|
- | |||||
| 174 | WH2X934 | Scr 12-14 Ab Sh 1/2 S |
|
- | |||||
| 175 | WH2X933 | Scr 8-16 Plt T Pa 1/2 S |
|
- | |||||
| 176 | WH2X931 | Scr 8-32 B Hxw 1/2 S |
|
- | |||||
| 180 | WR1X1747 | Scr 10-12 A Hxw 7/8 S |
|
- | |||||
| 180 | * 72-33-4 | Clutch Asm |
|
- | |||||
| 182 | * 74-05 | Bracket Timer |
|
- | |||||
| 187 | WH2X946 | Scr 10-32 M Hxw 1/4 S |
|
- | |||||
| 204 | WZ04X0345 | Screw |
|
- | |||||
| 382 | WH42X2091 | Door Mtr Case Access Ad |
|
- | |||||
| 382 | WH42X2092 | Door Mtr Case Access Ha |
|
- | |||||
| 382 | WH42X2090 | Door Mtr Case Access Wh |
|
- | |||||
| 397 | WH42X2086 | Meter Case Painted Ad |
|
- | |||||
| 397 | WH42X2083 | Meter Case Painted Wh |
|
- | |||||
| 397 | WH42X2085 | Meter Case Painted Ha |
|
- | |||||
| 403 | WH7X41 | Pulley And Brkt Asm |
|
- | |||||
| 420 | WH2X893 | Scr 10-16 Hx 3/8 S |
|
- | |||||
| 460 | BUY LOCAL | Screw |
|
- | |||||
| 463 | WE1X956 | Bushing |
|
- | |||||
| 546 | WH12X870 | Housing Terminal Bk |
|
- | |||||
| 550 | WE2X281 | Scr 8-15 Hx 3/8 S |
|
- | |||||
| 551 | WH12X417 | Housing Terminal |
|
- | |||||
| 553 | WH1X2010 | Insulator |
|
- | |||||
| 560 | WD1X1434 | Terminal Special |
|
- | |||||
| 809 | WH8X253 | Nozzle Overflow |
|
- | |||||
| 827 | WH1X1966 | Coupling Tub Hose |
|
- | |||||
| 1458 | WB17X145 | Terminal For Wb17x0147 |
|
- | |||||
| 3006 | WE2X263 | Scr |
|
- | |||||
| 3097 | WE1X762 | Clip Grounding |
|
- | |||||
| 32767 | 31-2112 | Pm Instruction Instal |
|
- |
