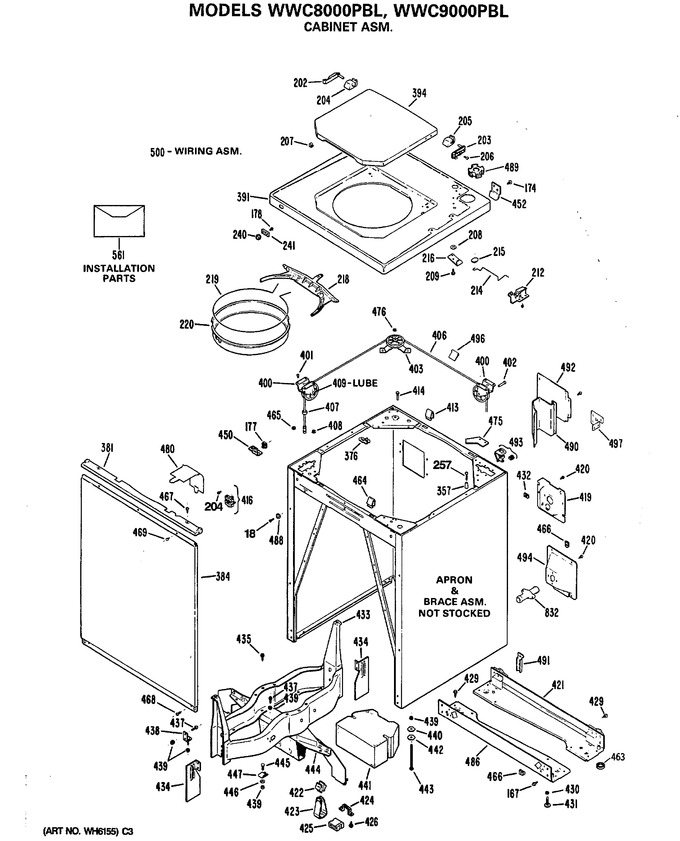

1 - Backsplash & Coin Box Assembly


2 - Cabinet Asm.


3 - Agitator, Tub & Pump Assembly


4 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
174	WH2X934		Scr 12-14 Ab Sh 1/2 S		Appelez-nous	-
177	WH2X923		Nut Clip		Appelez-nous	-
178	WH2X939		Scr 6-19 Pt Hx 1/4 S		Appelez-nous	-
202	WH1X2085		Hinge Pivot L.h.		Appelez-nous	-
203	WH1X2222		Hinge Pivot R.h.		Appelez-nous	-
204	WZ04X0345		Screw		Appelez-nous	-
204	WH1X2087		Pad-hinge L.h.		Appelez-nous	-
205	WH1X2086		Pad-hinge R.h.		Appelez-nous	-
206	WH2X819		Screw		Appelez-nous	-
207	WH1X1654		Bumper Lid		Appelez-nous	-
208	WH1X2088		Gasket		Appelez-nous	-
209	WH2X820		Screw		Appelez-nous	-
212	WH12X494		Switch & Bracket Asm				$ 18.02
214	WH1X2090		Actuator Switch		Appelez-nous	-
215	WG04L01749		Knob Actuator   (Replaces: WH1X2089)				$ 68.15
216	WH16X376		Bracket Actuator		Appelez-nous	-
218	WH16X413		Retainer Cover Shield		Appelez-nous	-
219	WH16X370		Strap Steel		Appelez-nous	-
220	WH8X366		Shield Cover		Appelez-nous	-
240	WH1X2266		Button Plug		Appelez-nous	-
241	WH1X2268		Retainer Button		Appelez-nous	-
257	NOT STOCK		Screw 10-12 X 1 1/8		Appelez-nous	-
