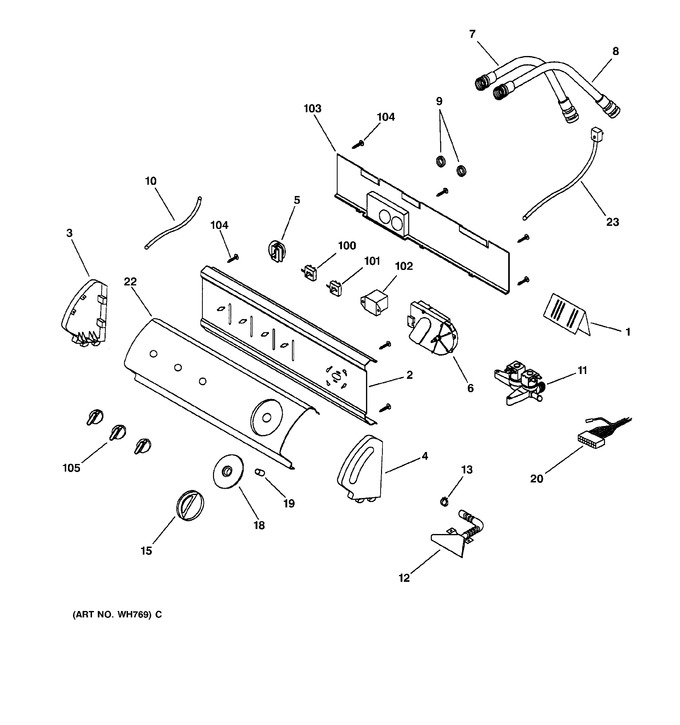

SELECT A DIAGRAM

1 - Backsplash


2 - Cabinet Parts


3 - Basket & Agitator


4 - Suspension, Pump & Drive Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-15293		Pm Manual Mini		Appelez-nous	-
1	49-9955		Owner's Manual		Appelez-nous	-
2	WH46X10009		Support Switch		Appelez-nous	-
3	WE19X10005		End Cap Left Wh		Appelez-nous	-
4	WE19X10004		End Cap Right Wh		Appelez-nous	-
5	WH12X10041		Pressure Switch		Appelez-nous	-
6	WH12X10042		Timer		Appelez-nous	-
7	WH41X58		Inlet Hose		Appelez-nous	-
8	WH41X10034		Inlet Hose		Appelez-nous	-
9	WH02X10055		Hose Washer		Appelez-nous	-
10	WH41X10031		Pressure Switch Hose		Appelez-nous	-
11	WH13X10003		Valve		Appelez-nous	-
12	WH41X10015		Water Inlet Hose		Appelez-nous	-
13	WH1X2036		Clamp Hose		Appelez-nous	-
15	WH1X2710		Knob Asm		Appelez-nous	-
18	WH11X10007		Dial		Appelez-nous	-
19	WH2X650		Ring Comp		Appelez-nous	-
20	WH19X10009		Harness		Appelez-nous	-
22	WH42X10072		Switch Trim		Appelez-nous	-
23	WH19X311		Cordset Asm		Appelez-nous	-
100	WH12X1019		Rotary Switch Temp.		Appelez-nous	-
101	WH12X1007		Rotary Switch X/rinse		Appelez-nous	-
102	WH12X1012		Relay		Appelez-nous	-
103	WH46X10008		Panel Back		Appelez-nous	-
104	WE2X281		Scr 8-18 Ab Hwx 3/8 S		Appelez-nous	-
105	WH1X2721		Knob & Clip Asm Wh				$ 9.15

    View Diagram in Separate Window       Print Part List
