SELECT A DIAGRAM

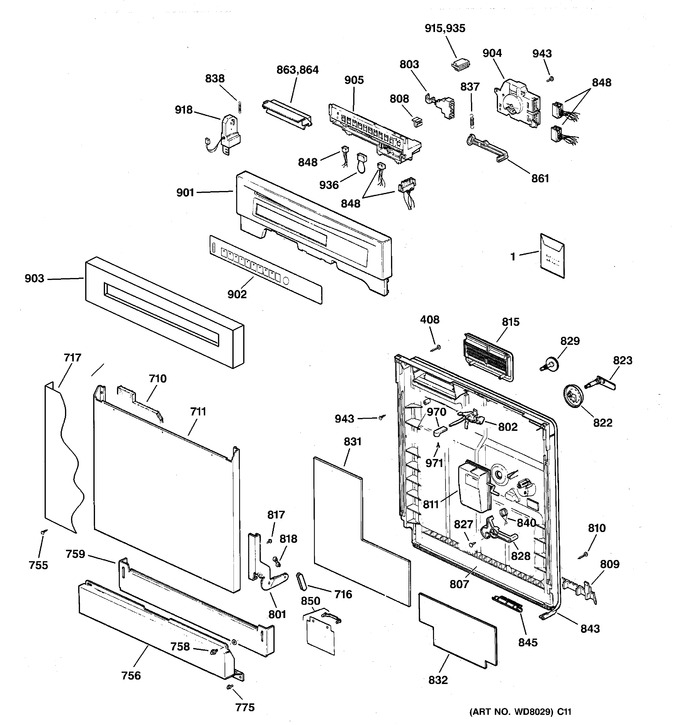

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30353		Pm Sheet Mini Manual		Appelez-nous	-
1	31-30515		Pm Instruction Instal		Appelez-nous	-
1	49-5867		Pm Manual Use & Care		Appelez-nous	-
408	WD2X296		Screw 8-32x5/8		Appelez-nous	-
710	WD01X10019		Insulation		Appelez-nous	-
711	WG04F01726		Panel Front Bk   (Replaces: WD31X10005)				$ 77.69
716	WG04L00677		Link Hinge Arm   (Replaces: WD14X10009)			Immediately	$ 5.72
717	WD27M275		Door Cover Ss		Appelez-nous	-
755	WD2X430		Screw 8-18 5/16 Ph		Appelez-nous	-
756	WD27M276		Access Cover Ss		Appelez-nous	-
758	WD02X10061		Scr 8-18 Pl Hxw 3/8 Ss		Appelez-nous	-
758	WD02X10056		Screw 8-32 X 5/16 Sph		Appelez-nous	-
759	WD27X10020		Toekick Asm Bk		Appelez-nous	-
775	WD02X10057		Scr 10-16x1/2 Ab Hxw S		Appelez-nous	-
775	WD2X5166		Scr 10-16x1/2 Ab Hxw S		Appelez-nous	-
801	WD14X10007		Arm Hinge Complete Lh		Appelez-nous	-
801	WD14X10008		Arm Hinge Complete Rh		Appelez-nous	-
802	WG04F00607		Latch Asm   (Replaces: WD13X10003)				$ 50.11
803	WG04F01066		Switch Interlock Asm   (Replaces: WD06X10002)				$ 164.54
807	WG04L00152		Door Inner   (Replaces: WD31X10004)				$ 79.14
808	WR2X4039		Adhesive Clip		Appelez-nous	-
809	WD31X312		Door Extension		Appelez-nous	-
810	WD2X322		Scr 8-18x7/8 Bt		Appelez-nous	-
811	WG04A00417		Rinse Aid Inj Asm   (Replaces: WD12X398)				$ 93.20
815	WD12X10026		Vent		Appelez-nous	-
817	WD2X445		Scr 10-32 T Hex .7 S		Appelez-nous	-
817	WD1X550		Scr 8-32 Pnt 1/2 S		Appelez-nous	-
818	WD12X10025		Bearing Hinge Arm		Appelez-nous	-
822	WG04F01675		Cover Detergent Cup   (Replaces: WD16X297)				$ 11.44
823	WG02F04142		Shaft/handle Det Cup   (Replaces: WD16X313)			Immediately	$ 52.67
827	WD2X425		Scr 10-12x1/2 Ac Pnr S		Appelez-nous	-
828	WG04F00608		Latch Detergent Cup   (Replaces: WD16X10005)				$ 51.53
829	WD12X10037		Indicator Asm Jet Dry		Appelez-nous	-
831	WD01X10025		Mastic Door		Appelez-nous	-
832	WD1X1469		Damper Sound		Appelez-nous	-
837	WD3X749		Spring Timer Lever		Appelez-nous	-
838	WD3X776		Spring Vent		Appelez-nous	-
840	WG04A01084		Detergent Trip Spring   (Replaces: WD3X764)				$ 3.57
843	WG04L00216		Gasket   (Replaces: WD08X10014)			Immediately	$ 40.68
845	WD08X10015		Gasket Insert		Appelez-nous	-
848	WD21X10025		Harness Service		Appelez-nous	-
850	WG04L03110		Drip Shield   (Replaces: WD12X338)				$ 17.01
861	WD12X10019		Lever Switch		Appelez-nous	-
863	WD12X10020		Vent Asm		Appelez-nous	-
864	WD12X10021		Vent Flap		Appelez-nous	-
901	WD34X10542		Escutcheon & Insert Asm		Appelez-nous	-
902	WD34X10540		Insert Escutcheon		Appelez-nous	-
903	WD34M799		Escutcheon Cover		Appelez-nous	-
904	WD21X10101		Sequence Switch		Appelez-nous	-
905	WD21X10096		Control Asm		Appelez-nous	-
915	WD1X1432		Housing Terminal (black)		Appelez-nous	-
915	WD1X1433		Housing Terminal		Appelez-nous	-
918	WD21X10022		Driver Vent		Appelez-nous	-
935	WD1X1434		Terminal Special		Appelez-nous	-
936	WD21X10105		Harness		Appelez-nous	-
943	WZ05X0219		Screw Escutcheon		Appelez-nous	-
970	WG04L00703		Knob, Latch Handle Bk   (Replaces: WD9X351)			Immediately	$ 5.72
971	WZ02X0045		Screw Latch Knob		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
